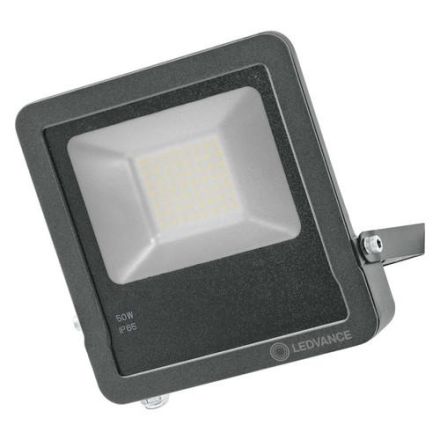

LEDVANCE Osram 4058075474666 SMART OUTD WIFI FLOOD 50W DIM DG LED spotlight

In stock
SKU: 842079
€51.74
Into a basketIn the basketGo

Overview

Floodlight with WiFi technology. Product features: Can be controlled via LEDVANCE SMART+ WiFi app (with at least AndroidT 4.4 or iOS 9.0). Can be controlled via Google Assistant or Amazon Alexa. Dimmable. Network protocol: WiFi. Mounting bracket with rotation range of up to 180°. Protection class: IP65. Connection via 0.5m cable, wiring required. Product advantages: Simple and quick installation. Partially frosted cover made of tempered glass for uniform lighting. Areas of application: Illumination of facades. Technical equipment: Mounting bracket included. Includes mounting screws and dowels. Control via app or voice control requires a compatible smart home system. A smartphone or tablet is required for control via LEDVANCE SMART + WiFi app

PropertyValue
Max. System power:50.00 W
Rated luminous flux according to IEC 62722-2-1:4000 lm
Housing material:Aluminum
Protection class (IP):IP65
Socket:without
Light source:LED not replaceable
Protection class:I
With light source:yes
With control gear:yes
Suitable for recessed mounting:no
Length:237.00 mm
Width:200.00 mm
Height/depth:36.00 mm
With motion detector:no
Color temperature:3000 K
Nominal voltage:220 to 240 V
Color rendering index CRI:80-89
Suitable for ceiling mounting:no
Operating device:EVG
Impact resistance:IK05
Luminaire with limited surface temperature 'D-mark':no
Luminous flux:4000 lm
Covering of the luminaire with thermal insulation material possible:no
Voltage type:AC
Light color:white
Suitable for track mounting:no
Suitable for clamp mounting:no
Suitable for pendant suspension:no
Suitable for Pedestal/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for surface mounting:yes
Suitable for cable system:no
Brushed surface:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in device):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light emission:direct
Rated service life L70/B50 at 25 °C:30000 h
Rated ambient temperature according to IEC62722-2-1:-20 to 40 °C
Type of wiring:Termination
Power factor:0.90
Number of poles:3
Connection type:Plug terminal
Luminous efficacy:85 lm/W
Suitable for computer workstations in accordance with EN 12464-1:no
Glow wire test in accordance with IEC 60695-2-11:650 °C - 30 s

Characteristics

HABSMART OUTD WIFI FLOOD 50W DIM DG
ManufacturerLEDVANCE Osram
HAN4058075474666
GTIN4058075474666
Covering the luminaire with thermal insulation material possibleNo
Connection typePlug-in terminal
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C30000 hours
Rated luminous flux according to IEC 62722-2-14000lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1No
Width200.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionNo
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth36.00 mm
Power factor0.90
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy85lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux4000lm
Length237.00 mm
Max. system performance50.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
Brushed surfaceNo
Without dimming functionNo
Number of poles3
Impact resistanceIK05
IP protection)IP65
Protection classI
Voltage typeAC
Housing materialAluminum
