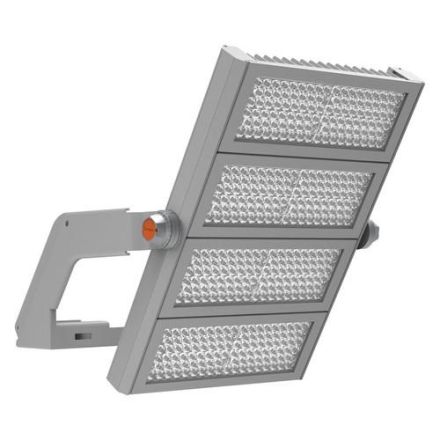

LEDVANCE Osram 4058075580671 FL MAX LUM P 1200W 757 SYM 30 WAL LED spotlight

LEDVANCE Osram 4058075580671 FL MAX LUM P 1200W 757 SYM 30 WAL LED spotlight

In stock

SKU: 842603

Price on request

€1,930.78

€0

Overview

High-performance spotlight for large-area and sports facility lighting, up to 164 klm. Product features: Modular high-performance spotlight with up to 135 lm/W. Joint or separate installation with Floodlight Max power supply at a distance of up to 40 m. Available with 10°, 30° and 60° symmetrical light distribution, as well as 50°x110° asymmetrical beam characteristics. Mounting bracket with rotation range of up to 180°. Cover plate made of highly transparent, tempered glass. Product advantages: Extremely bright, robust and durable. Up to 45% energy savings compared to lights that use conventional discharge lamps. Easy dimming to 50% using wiring. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Optimized product logistics, light heads and power supplies to be ordered separately in separate packaging. Low-flicker light. 5-year guarantee. Areas of application: Outdoor use (IP66). Illumination of large areas. Sports facilities. Construction sites. Direct replacement for luminaires that use HID lamps. Technical equipment: Power supply not included with the luminaire head. Operation only with official 1200 W power supply GTIN (EAN) 4058075580749. Aiming aid in preparation. Cover to limit the front beam angle in preparation.

Property	Value
Max. System power:	1200.00 W
Rated luminous flux according to IEC 62722-2-1:	162000 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP66
Socket:	without
Light source:	LED not replaceable
With light source:	yes
With control gear:	no
Suitable for recessed mounting:	no
Length:	841.00 mm
Width:	591.00 mm
Height/Depth:	282.00 mm
With motion detector:	no
Color temperature:	5700 K
Nominal voltage:	1 to 0 V
Beam angle:	medium beam 21-40°
Color rendering index CRI:	70-79
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	matt
Luminous flux:	162000 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	DC
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for Clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for truss mounting:	yes
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	100000 h
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Type of wiring:	Termination
Number of poles:	3
Luminaire luminous efficacy:	135 lm/W
Suitable for VDU workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG2

Characteristics

HABFL MAX LUM P 1200W 757 SYM 30 WAL

Manufacturer

HAN4058075580671

GTIN4058075580671

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Beam angleMedium beam 21-40°

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-1162000lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Suitable for computer workstations according to EN 12464-1No

Width591.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI70-79

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth282.00 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy135lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux162000lm

Light distributorReflector

Light distributionSymmetrical

Length841.00 mm

Max. system performance1200.00W

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG2

Number of poles3

ReflectorFrosted

Impact resistanceIK08

IP protection)IP66

Voltage type

AdjustabilitySwiveling

Housing materialAluminum
