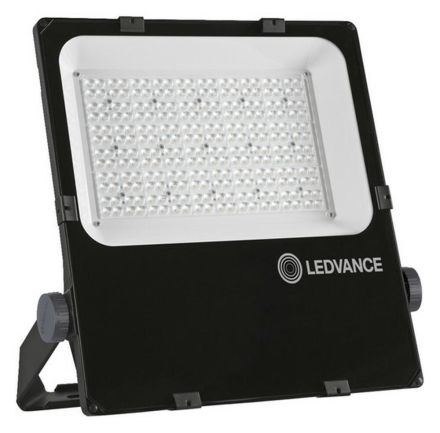

LEDVANCE Osram 4058075760691 FL PFM DA 200W 4000K ASYM 45X140 BK LED spotlight

In stock
SKU: 1062092
€555.48
Into a basketIn the basketGo

Overview

DALI 2.0 based spotlight with very wide beam, asymmetrical light distribution for area lighting. Product features: DALI 2.0 interface for integration into light management systems. High luminous efficacy: up to 140 lm/W. Asymmetrical light distribution for area lighting. Angled (45°) mounting bracket with rotation range of up to 180°. High surge protection of up to 10 kV (L/N-PE), 6 kV (LN). Integrated climate membrane to prevent condensation inside the luminaire. Connection via cable (2 m), wiring required. Protection class: IP66. Shock resistance: IK08. Ambient temperature range during operation: -30.+50 °C. Product advantages: Energy savings of up to 90% compared to halogen lamp floodlights. Up to 45% energy savings compared to luminaires that use conventional discharge lamps. Bright, robust and durable. Uniform luminance distribution and reduced glare. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Keyhole for particularly easy installation. 5 year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Outdoor use (IP66). Parking lots. Public spaces. Industry. Sports facilities. Parking lots, industrial roads. D-mark according to EN 60598-2-24 for operating areas at risk of fire, e.g. due to accumulation of dust.

PropertyValue
BEG funding program:Yes
Rated luminous flux according to IEC 62722-2-1:26200 lm
Color temperature:4000 K
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP66
Impact resistance:IK08
Protection class:I
Rated ambient temperature according to IEC62722-2-1:-30 - 50 °C
Length:2000 mm
Width:395.00 mm
Height/Depth:87.00 mm
Voltage type:AC
Nominal voltage:220 - 240 V
Max. System power:200.00 W
Luminaire luminous efficacy:131 lm/W
With control gear:yes
Control gear:EVG
DALI dimming:yes
DALI-2 dimming:yes
Number of poles:2
Type of wiring:Termination
With light source:yes
Light source:LED not replaceable
Light emission:direct
Light distribution:asymmetric
Light distributor:Focus lens
Housing color:black
Housing material:aluminum
Suitable for surface mounting:yes
Photobiological safety according to EN 62471:RG1
Weight:6.85
Weight unit:KG
Wall mounting:yes
Suitable for Pedestal/floor mounting:yes
Luminous flux:26200 lm
Rated service life L70/B50 at 25 °C:100000 h
DMX dimming:yes
Reflector:without
Socket:without
Surface:powder-coated
Adjustability:pivoting
Max. number of lights, circuit breaker C16:4
Max. Number of lights circuit breaker B16:2
Short description:FLOODLIGHT PERFORMANCE DALI ASYM 45x140 200W 4000K BK

Characteristics

Wall mountingYes
HABFL PFM DA 200W 4000K ASYM 45X140 BK
ManufacturerLEDVANCE Osram
HAN4058075760691
GTIN4058075760691
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C100000 hours
Rated luminous flux according to IEC 62722-2-126200lm
Rated ambient temperature according to IEC62722-2-1-30 - 50 °C
Operating deviceElectronic ballast
Width395.00 mm
Dimming DALIYes
Dimming DALI-2Yes
Dimming DMXYes
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
VersionWithout
Suitable for surface mountingYes
Suitable for podium/floor mountingYes
Housing colorBlack
Weight6,85
Weight unit kg
Height/Depth87.00 mm
Short descriptionFLOODLIGHT PERFORMANCE DALI ASYM 45x140 200W 4000K BK
Luminaire luminous efficacy131lm/W
LampsLED not replaceable
Light emissionDirect
Luminous flux26200lm
Light distributorFocus lens
Light distributionAsymmetrical
Length2000 mm
Max. number of luminaires Circuit breaker B162
Max. number of luminaires Circuit breaker C164
Max. system performance200.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
SurfacePowder coated
Photobiological safety according to EN 62471RG1
Number of poles2
ReflectorWithout
Impact resistanceIK08
IP protection)IP66
Protection classI
Voltage typeAC
AdjustabilitySwiveling
Housing materialAluminum
