Megaman TOTT M IP65 24W 2300lm 840 LED spotlight

In stock

SKU: 525240

Price on request

€21.88

€0

Overview

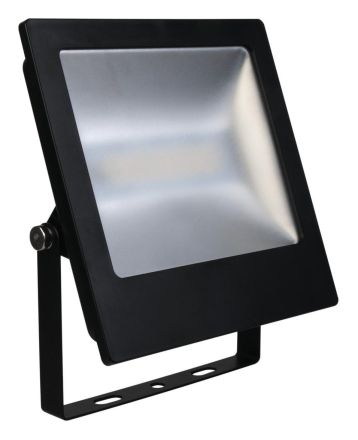

LED surface/outdoor spotlight in size M with integrated LED chips and drivers. SMD chips with diffuser for even light distribution and glare-reduced light. The housing is dust and splash-proof thanks to the IP65 protection class and is therefore also suitable for use near the coast (salt water resistant). The housing is robust, light, durable, rust-proof, impact-resistant and has a powder-coated mounting bracket.

Property	Value
System power:	24 W
Rated luminous flux:	2300 lm
Housing color:	black
Housing material:	plastic
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
With light source:	yes
With operating device:	yes
Suitable for Built-in installation:	no
Length:	179 mm
Width:	179 mm
Height/depth:	138 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	not required
Beam angle:	extremely wide beam>80°
Reflector:	matt
Luminous flux:	2300 lm
Cover material:	plastic matt/satin
Voltage type:	AC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for traverse mounting:	yes
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	untreated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Luminous intensity:	1065 cd
Wiring type:	termination
Power factor:	0.9
Number of poles:	3
Connection type:	plug-in terminal
Suitable for computer workstations in accordance with EN 12464-1:	no
Color consistency (McAdam Ellipse):	SDCM6
Replaceable control gear:	no
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Rated luminous flux2300 lm

HABTOTT M IP65 24W 2300lm 840

Manufacturer

HANMM69374

GTIN4020856693740

Connection typePlug-in terminal

Type of wiringDiploma

Beam angle adjustableNo

Replaceable operating deviceNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width179 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM6

Color temperature

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingYes

Suitable for wall mountingYes

Housing colorBlack

Height/Depth138 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2300lm

Luminous flux adjustableNo

Light intensity1065 cd

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length179 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionUntreated

Without dimming functionYes

Number of poles3

ReflectorFrosted

IP protection)IP65

Voltage type

System performance24W

AdjustabilitySwiveling

Cover materialPlastic matt/satin

Housing materialPlastic
