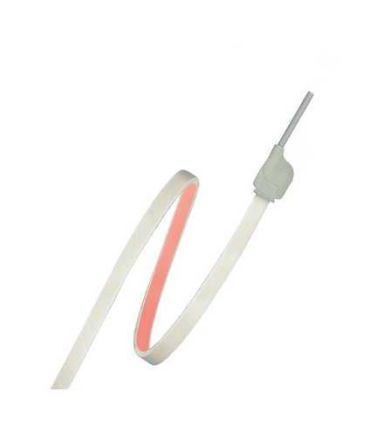

LEDVANCE Osram 4052899481749 LFP1200 940 09 10.6W/m 1200lm/m L:900 LED strip light

In stock
SKU: 705315
€1,369.89
Into a basketIn the basketGo

Overview

Product family advantages: High luminous flux. Great design freedom thanks to the flexibility and cuttability of the module. High-performance silicone for an extremely long service life and flexibility. Easy contacting thanks to the pre-assembled plug. Special design and high-quality materials. Toolless connection only if using the optional CONNECT system. Easy installation on many smooth surfaces thanks to the self-adhesive tape on the back. Outdoor use possible: UV and salt resistance (UV according to DIN EN 4892-2 - method A, salt resistance according to IEC 60068-2-52 test method 1). Product family properties: Flexible and divisible LED strip. Luminous flux: up to 1,200 lm/m. Protection class: IP67. Dimmable with PWM technology. Fine White (3.5 SDCM). Areas of application: Facade accentuation. Ceiling integration. Wall integration. Cove lighting. Machine lighting. Path lighting. Suitable for outdoor use. Technical equipment: Easier connection with the optional, matching CONNECT system. Quick installation with optional SLIM TRACK system.

PropertyValue
Lamp power per meter:10.6 W
With connection set:yes
Number of lamps per meter:70
Smallest bending radius:50 mm
Width:11.1 mm
Length:9000 mm
Beam angle:120 °
Design:Band
With end piece:yes
Color temperature:4000 K
Light source:LED not replaceable
Protection class (IP):IP67
Self-adhesive:yes
Voltage type:DC
Number of lamps per base:21
Lamp power per base:3.2 W
Luminous flux per meter:1200 lm
Lamp voltage:24 V
Energy efficiency class of the built-in lamp:G
Rated service life L70/B10 at 25 °C:60000 h
Rated service life L70/B50 at 25 °C:60000 h
Rated service life L80/B10 at 25 °C:60000 h
Rated service life L80/B50 at 25 °C:60000 h
Rated service life L90/B10 at 25 °C:60000 h
Rated service life L90/B50 at 25 °C:60000 h
Max. system power:95 W
Light color:white
Height/depth:4.80 mm
With protective cover:yes
Number of poles:2
Conductor cross-section:0.34 mm
Connection type:other

Characteristics

Energy efficiency class of the permanently installed light sourceG
With end pieceYes
With connection setYes
Rated service life L90/B10 at 25 °C60000 h
Number of lamps per foot21
Rated service life L70/B10 at 25 °C60000 h
Rated service life L80/B50 at 25 °C60000 h
HABLFP1200 940 09 10,6W/m 1200lm/m L:900
ManufacturerLEDVANCE Osram
HAN4052899481749
GTIN4052899481749
Connection typeOther
Number of lamps per meter70
VersionTape
Beam angle120°
Rated lifetime L70/B50 at 25 °C60000 hours
Rated lifetime L80/B10 at 25 °C60000 hours
Width11.1 mm
Color temperature4000K
Height/Depth4.80 mm
Smallest bending radius50 mm
Lamp power per meter10.6W
Lamp voltage24V
Conductor cross-section0.34 mm
LampsLED not replaceable
Light colorWhite
Luminous flux per meter1200lm
Length9000 mm
Max. system performance95W
With protective coverYes
Number of poles2
Self-adhesiveYes
Voltage typeDC
LEDVANCE Osram 4052899481749 LFP1200 940 09 10.6W/m 1200lm/m L:900 LED strip light
