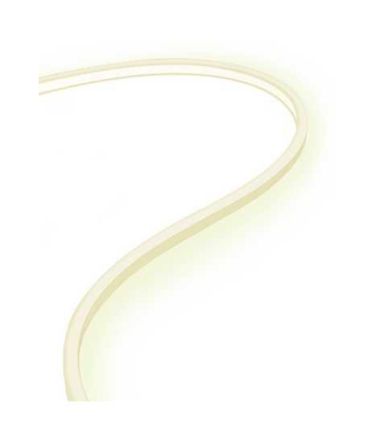

LEDVANCE Osram 4052899499768 LFD800T 11.5W/m 750lm/m 2700K L:600cm LED strip light

In stock
SKU: 705611
€1,130.21
Into a basketIn the basketGo

Overview

Product family advantages: IP67 protection with high-performance silicone. Reliable connection over a longer period of time: IP67 connector with built-in protection against liquids penetrating the LED light strip through wires. Outdoor use possible: UV and salt resistance (UV according to DIN EN 4892-2 - method A, salt resistance according to IEC 60068-2-52 test method 1). Product family properties: Diffuse light line without visible light points. Flexible and cuttable module for maximum design freedom. 6m operating length per feeder possible. Ideal for luminaire design. Extra strong self-adhesive back for easy installation. 24V technology for easy adjustment. Best system compatibility with OPTOTRONIC© drivers. Increased reliability through reel-to-reel process. Areas of application: Individual and customer-specific luminaires. Flexibly shaped luminaires. Building integration, e.g. in ceilings or walls. Object integration, e.g. in railings. Illuminated advertising and illuminated signage.

PropertyValue
Lamp wattage per meter:11.5 W
With connection set:yes
Number of lamps per meter:140
Smallest bending radius:100 mm
Width:14.1 mm
Length:6000 mm
Beam angle:120 °
Design:Band
With end piece:no
Color temperature:2700 K
Light source:LED not replaceable
Protection class (IP):IP66
Self-adhesive:yes
Voltage type:DC
Number of lamps per base:42
Lamp power per base:3.5 W
Luminous flux per meter:750 lm
Lamp voltage:24 V
Energy efficiency class of the built-in lamp:G
Rated service life L70/B10 at 25 °C:50000 h
Rated service life L70/B50 at 25 °C:50000 h
Rated service life L80/B10 at 25 °C:45000 h
Rated service life L80/B50 at 25 °C:50000 h
Rated service life L90/B10 at 25 °C:24000 h
Rated service life L90/B50 at 25 °C:28000 h
Max. system power:69 W
Light color:white
Height/depth:14.0 mm
With protective cover:yes
Number of poles:2
Conductor cross-section:1.0 mm
Connection type:other

Characteristics

Energy efficiency class of the permanently installed light sourceG
With end pieceNo
With connection setYes
Rated service life L90/B10 at 25 °C24000 h
Number of lamps per foot42
Rated service life L70/B10 at 25 °C50000 h
Rated service life L80/B50 at 25 °C50000 h
HABLFD800T 11,5W/m 750lm/m 2700K L:600cm
ManufacturerLEDVANCE Osram
HAN4052899499768
GTIN4052899499768
Connection typeOther
Number of lamps per meter140
VersionTape
Beam angle120°
Rated lifetime L70/B50 at 25 °C50000 hours
Rated lifetime L80/B10 at 25 °C45000 hours
Width14.1 mm
Color temperature2700K
Height/Depth14.0 mm
Smallest bending radius100 mm
Lamp power per meter11.5W
Lamp voltage24V
Conductor cross-section1.0 mm
LampsLED not replaceable
Light colorWhite
Luminous flux per meter750lm
Length6000 mm
Max. system performance69 W
With protective coverYes
Number of poles2
Self-adhesiveYes
Voltage typeDC
