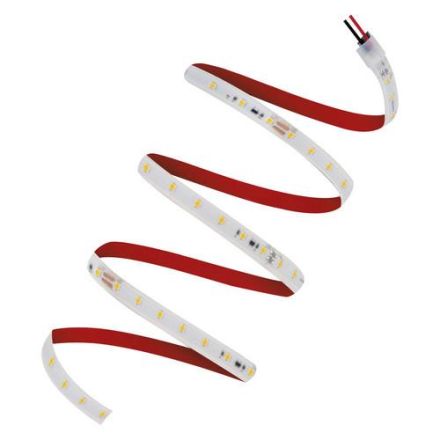

LEDVANCE Osram 4058075236981 LED STRIP PERFORMANCE -600/840/5/IP66

In stock
SKU: 515866
€71.29
Into a basketIn the basketGo

Overview

Powerful IP66 protected LED strips with 600 lm/m for demanding applications. Product features: Flexible and divisible LED strip. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 35,000 h at Tc max.: 75°C. Luminous flux: 600 lm/m. Color rendering index Ra: > 80. Initial color consistency: 4 SDCM (threshold unit). Wide range of color temperatures: from warm white to cool daylight. Protection class: IP66. Dimmable with suitable drivers, see also www.ledvance.de/dim). UV resistance (according to IEC 60068-2-5). Salt mist resistance (according to IEC 60068-2-52). Product advantages: Great design freedom thanks to long, flexible LED light strips. Easy installation, tool-free connection. Easy installation on many smooth surfaces thanks to self-adhesive tape. Suitable for use in damp environments thanks to high protection class. Maximum flexibility thanks to a wide range of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: General indoor lighting. General outdoor lighting. Industry. Offices, sales and conference rooms. Architectural lighting. Decorative lighting. Technical equipment: Connections, profiles and covers available for various installation options. End caps must be ordered separately.

PropertyValue
Lamp wattage per meter:5.4 W
With connection set:no
Length of the individual sections:100 mm
Number of lamps per meter:70
Smallest bending radius:25 mm
Width:10.00 mm
Length:5000.00 mm
Beam angle:105.00 °
Version:Band
With end piece:yes
Color temperature:4000 K
Light source:LED not replaceable
Protection class (IP):IP66
Self-adhesive:yes
Voltage type:DC
Mounting type:Structure
Number of lamps per foot:21
Luminous flux per meter:710 lm
Lamp voltage:24 V
Rated service life L70/B50 at 25 °C:35000 h
Protection class (NEMA):4X
Max. System power:27.00 W
Light color:white
Color rendering index CRI:80-89
Height/depth:4.50 mm
With protective cover:yes
Type of wiring:with through-wiring
Number of poles:2
Conductor cross-section:0.5 mm²
Connection type:Plug-in terminal

Characteristics

With end pieceYes
With connection setNo
Number of lamps per foot21
ManufacturerLEDVANCE Osram
HAN4058075236981
GTIN4058075236981
Connection typePlug-in terminal
Number of lamps per meter70
Type of wiringWith through wiring
VersionTape
Beam angle105.00 °
Rated lifetime L70/B50 at 25 °C35000 hours
Width10.00 mm
Color temperature4000K
Color rendering index CRI80-89
Height/Depth4.50 mm
Smallest bending radius25 mm
Lamp power per meter5.4W
Lamp voltage24V
Conductor cross-section0.5 mm²
LampsLED not replaceable
Light colorWhite
Luminous flux per meter710lm
Length5000.00 mm
Length of each section100 mm
Max. system performance27.00 W
With protective coverYes
Mounting typeConstruction
Number of poles2
IP protection)IP66
Protection class (NEMA)4X
Self-adhesiveYes
Voltage typeDC
