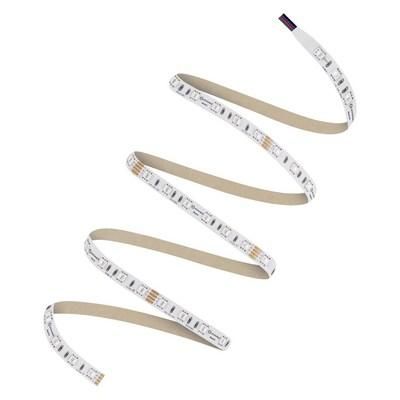

LEDVANCE Osram 4058075404441 LS VAL-500/RGB/5 10X1 LED strip light

In stock
SKU: 732118
€72.70
Into a basketIn the basketGo

Overview

RGB LED strips with 500 lm/m for general applications. Product features: Flexible and divisible LED strip with inline multichip RGB LEDs. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 40,000 hours at Tc max.: 75C. Dimmable via pulse width modulation (PWM). Product advantages: Great design freedom thanks to long, flexible RGB LED light strips. Homogeneous color changes. Easy installation, tool-free connection. Easy mounting on many smooth surfaces using self-adhesive tape. Maximum flexibility thanks to a large selection of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: Effect lighting in architecture. Dynamic effects in public areas. Cove lighting. Under-cabinet lighting. Hotels and offices. Living spaces.

PropertyValue
Lamp power per meter:14.4 W
With connection set:no
Length of the individual sections:100.0 mm
Number of lamps per meter:60
Smallest bending radius:30 mm
Length:500 mm
Beam angle:120 °
Design:Band
With end piece:no
Light source:LED not replaceable
Protection class (IP):IP00
Self-adhesive:yes
Voltage type:DC
Mounting type:structure
Number of lamps per base:18
Luminous flux per meter:535 lm
Operating device:not required
Rated service life L70/B50 at 25 °C:40000 h
Protection class (NEMA):1
Max. system power:67.00 W
Height/depth:2.20 mm
With protective cover:no
Number of poles:4
Conductor cross-section:0.5 mm²
Connection type:other

Characteristics

With end pieceNo
With connection setNo
Number of lamps per foot18
HABLS-VAL-500/RGB/5 10X1
ManufacturerLEDVANCE Osram
HAN4058075404441
GTIN4058075404441
Connection typeOther
Number of lamps per meter60
VersionTape
Beam angle120°
Rated lifetime L70/B50 at 25 °C40000 hours
Operating deviceNot required
Height/Depth2.20 mm
Smallest bending radius30 mm
Lamp power per meter14.4W
Conductor cross-section0.5 mm²
LampsLED not replaceable
Luminous flux per meter535lm
Length500 mm
Length of each section100.0 mm
Max. system performance67.00W
With protective coverNo
Mounting typeConstruction
Number of poles4
IP protection)IP00
Protection class (NEMA)1
Self-adhesiveYes
Voltage typeDC
