LEDVANCE Osram 4058075404472 LS VAL-500/RGB/5/IP65 10X1 LED strip light

In stock
SKU: 732108
€91.26
Into a basketIn the basketGo

Overview

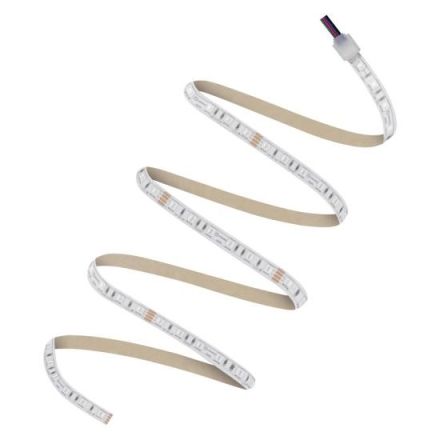

IP65 protected RGB LED strips with 500 lm/m for general applications. Product features: Flexible and divisible LED strip with inline multichip RGB LEDs. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 40,000 hours at Tc max.: 75C. Protection class: IP65. Salt mist resistant. Highly UV resistant. Dimmable via pulse width modulation (PWM). Product advantages: Great design freedom thanks to long, flexible RGB LED light strips. Homogeneous color changes. Easy installation, tool-free connection. Easy mounting on many smooth surfaces using self-adhesive tape. Maximum flexibility thanks to a large selection of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: Suitable for indoor and outdoor applications (IP65). Facade accentuation. Effect lighting in architecture. Dynamic effects in public areas. Cove lighting. Under-cabinet lighting. Hotels and offices. Living rooms.

PropertyValue
Lamp power per meter:14.4 W
With connection set:no
Length of the individual sections:100.0 mm
Number of lamps per meter:60
Smallest bending radius:30 mm
Length:500 mm
Beam angle:120 °
Design:Band
With end piece:yes
Light source:LED not replaceable
Protection class (IP):IP65
Self-adhesive:yes
Voltage type:DC
Mounting type:structure
Number of lamps per base:18
Luminous flux per meter:485 lm
Operating device:not required
Rated service life L70/B50 at 25 °C:40000 h
Protection class (NEMA):4
Max. system power:67.00 W
Height/depth:4.20 mm
With protective cover:yes
Number of poles:4
Conductor cross-section:0.5 mm²
Connection type:other

Characteristics

With end pieceYes
With connection setNo
Number of lamps per foot18
HABLS-VAL-500/RGB/5/IP65 10X1
ManufacturerLEDVANCE Osram
HAN4058075404472
GTIN4058075404472
Connection typeOther
Number of lamps per meter60
VersionTape
Beam angle120°
Rated lifetime L70/B50 at 25 °C40000 hours
Operating deviceNot required
Height/Depth4.20 mm
Smallest bending radius30 mm
Lamp power per meter14.4W
Conductor cross-section0.5 mm²
LampsLED not replaceable
Luminous flux per meter485lm
Length500 mm
Length of each section100.0 mm
Max. system performance67.00W
With protective coverYes
Mounting typeConstruction
Number of poles4
IP protection)IP65
Protection class (NEMA)4
Self-adhesiveYes
Voltage typeDC
