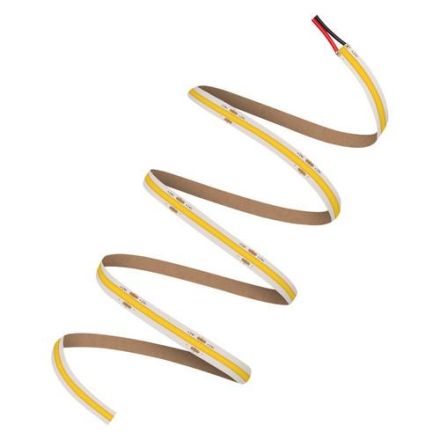

LEDVANCE Osram 4058075597532 LS PFM -1000/COB/930/5 LED strip light

In stock
SKU: 843071
€156.14
Into a basketIn the basketGo

Overview

Powerful COB LED strips with 1000 lm/m for demanding applications. Product features: Flexible and divisible LED strip. Luminous flux: 1000 lm/m. Very good color rendering index Ra: >90. Smallest divisible unit: 62.5 mm. Wide range of color temperatures: from warm white to cool daylight. Dimmable with suitable drivers, see also www.ledvance.de/dim). Product advantages: Exceptionally homogeneous light, with no visible LED points thanks to COB technology. Great design freedom thanks to the flexibility and cuttability of the module. Easy installation on many smooth surfaces thanks to self-adhesive tape on the back. Easy connection thanks to cables integrated on both sides. Maximum flexibility thanks to a wide range of accessories. Easy installation, tool-free connection. Areas of application: General lighting. Cove lighting. Bars, restaurants, hotels. Offices. Living rooms. Technical equipment: Connections, profiles and covers available for various installation options

PropertyValue
Voltage type:DC
Lamp power per meter:11.0 W
Width:8.00 mm
Length:500,000 mm
Beam angle:140 °
Color temperature:3000 K
Rated service life L70/B50 at 25 °C:50000 h
Protection class (IP):IP00
Luminous flux per meters:1010 lm
Max. System power:38.00 W
With connection set:no
Length of the individual sections:62.5 mm
Number of lamps per meter:384
Smallest bending radius:10 mm
With end piece:no
Self-adhesive:yes
Lamp voltage:24 V
Color rendering index CRI:90-100
With protective cover:no
Type of Wiring:with through-wiring
Number of poles:2
Connection type:plug-in terminal

Characteristics

With end pieceNo
With connection setNo
HABLS PFM-1000/COB/930/5
ManufacturerLEDVANCE Osram
HAN4058075597532
GTIN4058075597532
Connection typePlug-in terminal
Number of lamps per meter384
Type of wiringWith through wiring
Beam angle140°
Rated lifetime L70/B50 at 25 °C50000 hours
Width8.00 mm
Color temperature3000K
Color rendering index CRI90-100
Smallest bending radius10 mm
Lamp power per meter11.0W
Lamp voltage24V
Luminous flux per meter1010lm
Length500,000 mm
Length of each section62.5 mm
Max. system performance38.00W
With protective coverNo
Number of poles2
IP protection)IP00
Self-adhesiveYes
Voltage typeDC
