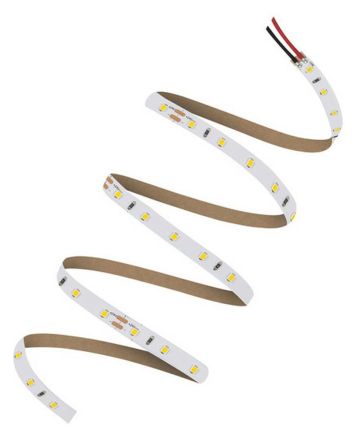

LEDVANCE Osram 4058075707795 LS V -500/827/5 LED strip light

In stock
SKU: 1063495
€28.74
Into a basketIn the basketGo

Overview

LED strips with 500 lm/m for many applications. Product features: Flexible and divisible LED strip. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 30,000 hours at Tc max.: 75°C. Luminous flux: 500 lm/m. Color rendering index Ra: 80. Wide range of color temperatures: from warm white to cool daylight. Dimmable with suitable drivers, see also www.ledvance.de/dim). Product advantages: Great design freedom thanks to long, flexible LED light strips. Easy installation, tool-free connection. Easy mounting on many smooth surfaces using self-adhesive tape. Maximum flexibility thanks to a wide range of accessories. Easy connection thanks to cables integrated on both sides. Areas of application: General interior lighting. Decorative lighting. Private living areas. Technical equipment: Connections, profiles and covers available for various mounting options. End caps must be ordered separately.

PropertyValue
Color temperature:2700 K
Protection class (IP):IP00
Length:5000.00 mm
Width:8.00 mm
Height/Depth:1.50 mm
Voltage type:DC
Max. System power:24.00 W
Connection type:Plug terminal
Number of poles:2
Wiring type:Terminal
Light source:LED not replaceable
Weight:0.08
Weight unit:KG
Mounting type:Structure
Design:Band
Conductor cross-section:0.5 mm²
Beam angle:120.00 °
Self-adhesive:yes
Smallest bending radius:30.0 mm
Lamp power per meter:5 W
Length of individual sections:100 mm
Number of lamps per meter:70
Lamp voltage:24 V
Constant luminous flux control:yes
Luminous flux per meter:530 lm
Rated service life L70/B50 at 25 °C:30000 h
Energy spectrum:A - G
Protection class (NEMA):other
Short description:LED STRIP V 500 -500/827/5

Characteristics

HABLS-V-500/827/5
ManufacturerLEDVANCE Osram
HAN4058075707795
GTIN4058075707795
Connection typePlug-in terminal
Number of lamps per meter70
Type of wiringDiploma
VersionTape
Beam angle120.00 °
Rated lifetime L70/B50 at 25 °C30000 hours
Width8.00 mm
Energy spectrumA - G
Color temperature2700K
Weight0,08
Weight unit kg
Height/Depth1.50 mm
Smallest bending radius30.0 mm
Constant luminous flux controlYes
Short descriptionLED STRIP V500-500/827/5
Lamp power per meter5W
Lamp voltage24V
Conductor cross-section0.5 mm²
LampsLED not replaceable
Luminous flux per meter530lm
Length5000.00 mm
Length of each section100 mm
Max. system performance24.00 W
Mounting typeConstruction
Number of poles2
IP protection)IP00
Protection class (NEMA)Other
Self-adhesiveYes
Voltage typeDC
