Megaman Marco Mini DBT SV 24° 36° 12W 950lm 828 LED track spotlight LB19

Megaman Marco Mini DBT SV 24° 36° 12W 950lm 828 LED track spotlight LB19

In stock

SKU: 525296

Price on request

€35.98

€0

Overview

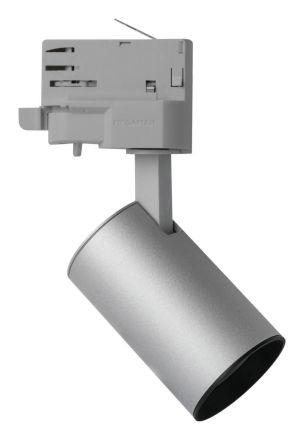

Track spotlight for universal 3-phase power track with dual beam technology including LED driver. Adjustable for precise lighting: 330° rotatable and 90° pivotable. Achieves optimal lighting effect through different beam angles. Impresses with brilliant, bright light and is characterized by a modern, attractive lighting design. Suitable for commercial users.

Property	Value
System power:	12 W
Rated luminous flux:	950 lm
Housing color:	Silver
Housing material:	Aluminum
Protection class (IP):	IP20
Outer diameter:	110 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With Light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Height/depth:	160 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	2800 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for Ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	not required
Beam angle:	medium beam 21-40°
Reflector:	other
Luminous flux:	950 lm
Cover material:	structured plastic
Voltage type:	AC
Light color:	white
Suitable for track mounting:	yes
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	painted
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	other
Light emission:	direct
Luminous intensity:	5500 cd
Wiring type:	Termination
Power factor:	0.9
Connection type:	other
Luminaire luminous efficacy:	79 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM3
Replaceable operating device:	no
Dimming DALI-2:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	levels
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
Article color:	silver

Characteristics

Rated luminous flux950 lm

HABMarco Mini DBT SV 24° 36° 12W 950lm 828

Manufacturer

HANMM78934

GTIN4020856789344

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Beam angle adjustableStages

Replaceable operating deviceNo

Outer diameter110 mm

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature

Color temperature adjustableNo

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingYes

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorSilver

Height/Depth160 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Luminaire luminous efficacy79lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux950lm

Luminous flux adjustableNo

Light intensity5500 cd

Light distributorOther

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPainted

Without dimming functionYes

ReflectorOther

IP protection)IP20

Protection classII

Voltage type

System performance12W

AdjustabilityRotatable and pivotable

Cover materialPlastic structured

Housing materialAluminum
