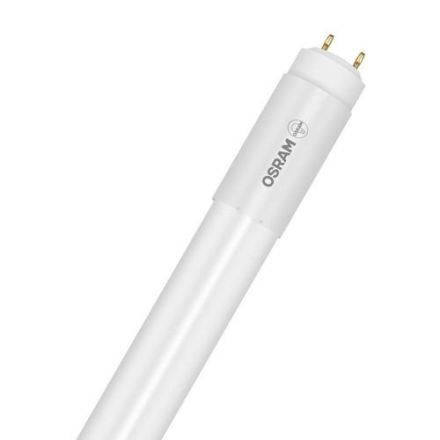

LEDVANCE Osram 4058075545076 ST8PROU-1.5M 23W/840 40-70VHF 10X1 LED Tube

In stock
SKU: 841846
€24.35
Into a basketIn the basketGo

Overview

LED tubes for electronic ballasts (EVG), splinter protection. Product features: T8 LED tube made of glass with G13 base. Low flicker according to EU 2019/2020. Lamp tube made of glass with splinter protection for applications e.g. in the food industry. Mercury-free and RoHS compliant. Protection class: IP20. Service life: up to 60,000 hours. Compatible with many commercially available electronic ballasts (see also compatibility list). Product advantages: Simple, quick and safe lamp replacement without rewiring. Splinter protection thanks to special PET coating. Also suitable for operation at low temperatures. High luminous flux for demanding lighting tasks. No sagging thanks to glass technology. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Supermarkets and department stores. Industry. Offices, public facilities.

PropertyValue
Lamp wattage:23 W
Color temperature:4000 K
Socket:G13
Lamp shape:Tube, double-ended
Nominal voltage:40 V
Length:1513.10 mm
Color rendering index CRI:80-89
Average nominal service life:60000 h
Diameter:27.80 mm
Weighted energy consumption in 1,000 hours:26.00 kWh
Voltage type:AC
Color:white
Light color according to EN 12464-1:neutral white 3300 to 5300 K
Protection class (IP):IP20
With remote control:no
Glass/cover design:frosted
Luminous flux:3700 lm
Nominal current:125 mA
Power factor:0.90
Lamp luminous efficacy:160 lm/W
Filament lamp:no
Housing color:white
Color consistency (McAdam ellipse):SDCM5
Energy efficiency index (EEI):0.09
Lamp designation:T8
Min. Number of switching operations:200000
Remote control possible:no
Photobiological safety according to EN 62471:RG0

Characteristics

Energy efficiency index (EEI)0.09
HABST8PROU-1.5M 23W/840 40-70VHF 10X1
ManufacturerLEDVANCE Osram
HAN4058075545076
GTIN4058075545076
Glass/cover designMatte
Diameter27.80 mm
ColorWhite
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Color rendering index CRI80-89
Remote control possibleNo
Filament lampNo
Housing colorWhite
Weighted energy consumption in 1,000 hours26.00 kWh
Lamp designationT8
Lamp power23W
Lamp luminous efficacy160lm/W
Power factor0.90
Light colour according to EN 12464-1Neutral white 3300 to 5300 K
Luminous flux3700lm
Length1513.10 mm
Min. number of switching operations200000
With remoteNo
Average nominal life60000 hours
Nominal voltage40V
Rated current125mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG13
Voltage typeAC
