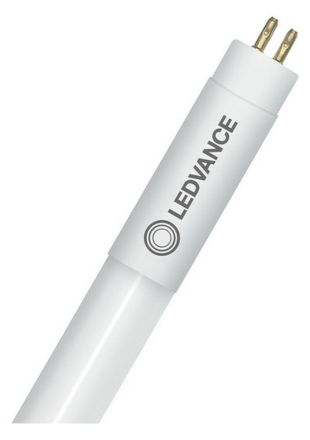

LEDVANCE Osram 4058075823631 LEDTUBE T5HF L8 SHORT V 288 4W 840 LED tube

In stock
SKU: 1062700
€21.49
Into a basketIn the basketGo

Overview

LED tubes for electronic ballasts. Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Lamp tube made of glass with shatter protection. High color consistency: 5 SDCM (threshold unit). Service life: up to 30,000 hours. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20. Compatible with many commercially available electronic ballasts (see also compatibility list). Product advantages: No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring. Also suitable for operation at low temperatures. Please observe all safety instructions. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Public buildings. Kitchens. Under-cabinet lighting.

PropertyValue
Color temperature:4000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:288 mm
Voltage type:AC
Nominal voltage:26 V
Power factor:0.55
Photobiological safety according to EN 62471:RG0
Weight:0.05
Weight unit:KG
Color:white
Socket:G5
Diameter:18.50 mm
Lamp luminous efficacy:100 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:neutral white 3300 to 5300 K
Version Glass/cover:frosted
Average nominal lifetime:30000 h
Nominal current:223 mA
Weighted energy consumption in 1,000 hours:4 kWh
Lamp wattage:4 W
Luminous flux:400 lm
Min. Number of switching operations:200000
Beam angle:190 °
Rated luminous flux according to IEC 62612:400 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:F
Short description:LED TUBE T5 HF SHORT V 288 mm 4W 840

Characteristics

HABLEDTUBE T5HF L8 SHORT V 288 4W 840
ManufacturerLEDVANCE Osram
HAN4058075823631
GTIN4058075823631
Glass/cover designMatte
Beam angle190°
Rated luminous flux according to IEC 62612400lm
Diameter18.50 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015F
ColorWhite
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Color rendering index CRI80-89
Weight0,05
Weighted energy consumption in 1,000 hours4 kWh
Weight unit kg
Short descriptionLED TUBE T5 HF SHORT V 288 mm 4W 840
Lamp power4W
Lamp luminous efficacy100lm/W
Power factor0.55
Light colour according to EN 12464-1Neutral white 3300 to 5300 K
Luminous flux400lm
Length288 mm
Min. number of switching operations200000
Average nominal life30000 hours
Nominal voltage26V
Rated current223mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG5
Voltage typeAC
LEDVANCE Osram 4058075823631 LEDTUBE T5HF L8 SHORT V 288 4W 840 LED tube
