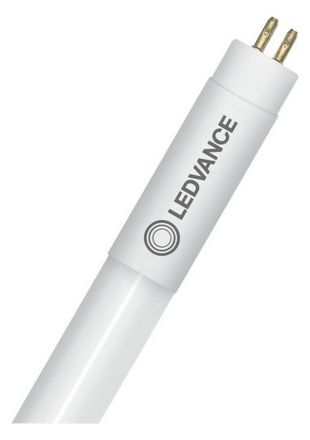

LEDVANCE Osram 4058075823655 LEDTUBE T5HF L13 SHORT V 517 7W 830 LED tube

In stock
SKU: 1062697
€22.52
Into a basketIn the basketGo

Overview

LED tubes for electronic ballasts. Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Lamp tube made of glass with shatter protection. High color consistency: 5 SDCM (threshold unit). Service life: up to 30,000 hours. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20. Compatible with many commercially available electronic ballasts (see also compatibility list). Product advantages: No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring. Also suitable for operation at low temperatures. Please observe all safety instructions. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Public buildings. Kitchens. Under-cabinet lighting.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:517 mm
Voltage type:AC
Nominal voltage:40 V
Power factor:0.59
Photobiological safety according to EN 62471:RG0
Weight:0.08
Weight unit:KG
Color:white
Socket:G5
Diameter:18.50 mm
Lamp luminous efficacy:110 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:warm white
Glass/cover design:frosted
Medium Nominal lifetime:30000 h
Nominal current:215 mA
Weighted energy consumption in 1,000 hours:7 kWh
Lamp power:7 W
Luminous flux:770 lm
Min. Number of switching operations:200000
Beam angle:190 °
Rated luminous flux according to IEC 62612:770 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:F
Short description:LED TUBE T5 HF SHORT V 517 mm 7W 830

Characteristics

HABLEDTUBE T5HF L13 SHORT V 517 7W 830
ManufacturerLEDVANCE Osram
HAN4058075823655
GTIN4058075823655
Glass/cover designMatte
Beam angle190°
Rated luminous flux according to IEC 62612770lm
Diameter18.50 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015F
ColorWhite
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
Weight0,08
Weighted energy consumption in 1,000 hours7 kWh
Weight unit kg
Short descriptionLED TUBE T5 HF SHORT V 517 mm 7W 830
Lamp power7W
Lamp luminous efficacy110lm/W
Power factor0.59
Light colour according to EN 12464-1Warm white
Luminous flux770lm
Length517 mm
Min. number of switching operations200000
Average nominal life30000 hours
Nominal voltage40V
Rated current215mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG5
Voltage typeAC
