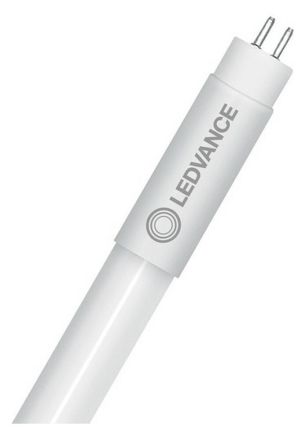

LEDVANCE Osram 4058075824416 LEDTUBE T5 AC HE14 P 549 7W 830 LED Tube LB23

In stock
SKU: 1062736
€19.02
Into a basketIn the basketGo

Overview

LED tubes for mains voltage. Product features: LED replacement for fluorescent lamps with G5 base on mains voltage. Lamp tube made of glass with shatter protection for applications e.g. in the food industry. High color consistency: 5 SDCM (threshold unit). Service life: up to 50,000 hours. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20. Product advantages: No sagging thanks to glass technology. Shatter protection thanks to special PET coating. High luminous flux for demanding lighting tasks. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:549 mm
Voltage type:AC
Nominal voltage:220 V
Photobiological safety according to EN 62471:RG0
Weight:0.09
Weight unit:KG
Color:white
Socket:G5
Diameter:19 mm
Lamp luminous efficacy:128 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:warm white
Glass/cover design:frosted
Medium Nominal lifetime:50000 h
Nominal current:33 mA
Weighted energy consumption in 1,000 hours:7 kWh
Lamp power:7 W
Luminous flux:900 lm
Min. Number of switching operations:200000
Beam angle:190 °
Rated luminous flux according to IEC 62612:900 lm
Energy efficiency index (EEI):0.90
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:E
Short description:LED TUBE T5 AC MAINS P 549 mm 7W 830

Characteristics

Energy efficiency index (EEI)0.90
HABLEDTUBE T5 AC HE14 P 549 7W 830
ManufacturerLEDVANCE Osram
HAN4058075824416
GTIN4058075824416
Glass/cover designMatte
Beam angle190°
Rated luminous flux according to IEC 62612900lm
Diameter19 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015E
ColorWhite
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
Weight0,09
Weighted energy consumption in 1,000 hours7 kWh
Weight unit kg
Short descriptionLED TUBE T5 AC MAINS P 549 mm 7W 830
Lamp power7W
Lamp luminous efficacy128lm/W
Light colour according to EN 12464-1Warm white
Luminous flux900lm
Length549 mm
Min. number of switching operations200000
Average nominal life50000 hours
Nominal voltage220V
Rated current33mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG5
Voltage typeAC
LEDVANCE Osram 4058075824416 LEDTUBE T5 AC HE14 P 549 7W 830 LED Tube LB23
LEDVANCE Osram 4058075824416 LEDTUBE T5 AC HE14 P 549 7W 830 LED Tube LB23
