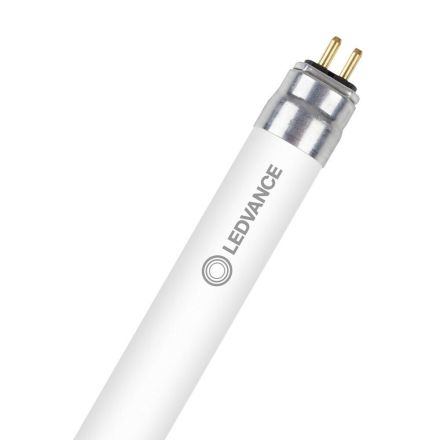

LEDVANCE Osram 4099854015199 T5 EXTERNAL P 1149mm 26W 830 LED tube

LEDVANCE Osram 4099854015199 T5 EXTERNAL P 1149mm 26W 830 LED tube

In stock

SKU: 1063700

Price on request

€21.17

€0

Overview

LED tubes T5 EXTERNAL for LED driver EXTERNAL. Product features: Designed for operation with LED DRIVER LED TUBE EXTERNAL DALI. Lamp tube made of glass with splinter protection. Product advantages: Splinter protection thanks to special PET coating. No sagging thanks to glass tube. Very high switching strength. 5 year guarantee. Areas of application: Industrial lighting (e.g. production plants, logistics centers, warehouses). Linear lighting solutions for offices, educational institutions, storage areas and retail. Shops, supermarkets. Suitable for SELV installations indoors. General lighting in ambient temperatures of -20...+50°C.

Property	Value
Color temperature:	3000 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM5
Protection class (IP):	IP20
Length:	1163.00 mm
Voltage type:	DC
Nominal voltage:	42 V
Power factor:	0.90
Photobiological safety according to EN 62471:	RG0
Weight:	0.13
Weight unit:	KG
Socket:	G5
Diameter:	17.00 mm
Lamp luminous efficacy:	138 lm/W
Lamp shape:	Tube, double-ended
Light color according to EN 12464-1:	warm white
Glass/cover design:	frosted
Average nominal service life:	50000 h
Nominal current:	600 mA
Weighted energy consumption in 1,000 hours:	26.00 kWh
IFTTT support available:	yes
Lamp power:	26 W
Luminous flux:	3600 lm
Lamp designation:	other
Min. Number of switching operations:	200000
Beam angle:	180.00 °
Rated luminous flux according to IEC 62612:	3600 lm
Energy efficiency class according to EU Directive 2019/2015:	E
Short description:	LED TUBE T5 EXTERNAL P 1149 mm 26W 830
Energy spectrum:	A - G

Characteristics

HABT5 EXTERNAL P 1149mm 26W 830

Manufacturer

HAN4099854015199

GTIN4099854015199

Glass/cover designMatte

Beam angle180.00 °

Rated luminous flux according to IEC 626123600lm

Diameter17.00 mm

Energy spectrumA - G

Energy efficiency class according to EU Directive 2019/2015E

Color consistency (McAdam ellipse)SDCM5

Color temperature

Color rendering index CRI80-89

Weight0,13

Weighted energy consumption in 1,000 hours26.00 kWh

Weight unit kg

IFTTT support availableYes

Short descriptionLED TUBE T5 EXTERNAL P 1149 mm 26W 830

Lamp designationOther

Lamp shape

Lamp power

Lamp luminous efficacy138lm/W

Power factor0.90

Light colour according to EN 12464-1

Luminous flux3600lm

Length1163.00 mm

Min. number of switching operations200000

Average nominal life50000 hours

Nominal voltage

Rated current600mA

Photobiological safety according to EN 62471RG0

IP protection)IP20

BaseG5

Voltage type
