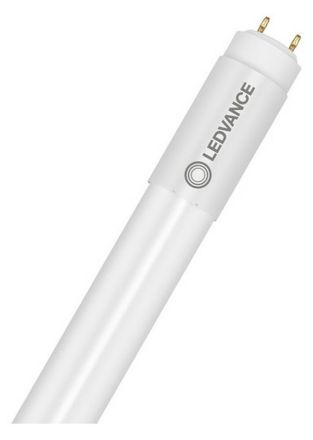

LEDVANCE Osram 4099854026614 LEDTUBE T8 UN P 1500 20W 840 LED tube

In stock
SKU: 1062714
€31.96
Into a basketIn the basketGo

Overview

LED tubes for electronic ballasts (EVG), electromagnetic ballasts (KVG) and mains voltage, splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG, EVG lights. Compatible with conventional and many commercially available electronic ballasts (see also compatibility list) and mains voltage. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Glass lamp tube with splinter protection for applications e.g. in the food industry. For particularly homogeneous illumination. Mercury-free and RoHS compliant. Protection class: IP20. Service life: up to 60,000 hours. Product advantages: No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring. Energy savings of up to 66% (compared to T8 fluorescent lamp). Very high switching strength. High luminous flux for demanding lighting tasks. Also suitable for operation at low temperatures. Full brightness without warm-up phase, therefore ideally suited in combination with sensors. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry.

PropertyValue
Color temperature:4000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:1513 mm
Voltage type:AC
Nominal voltage:220 V
Power factor:0.90
Photobiological safety according to EN 62471:RG0
Weight:0.34
Weight unit:KG
Base:G13
Diameter:27.80 mm
Lamp luminous efficacy:155 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:neutral white 3300 to 5300 K
Glass/cover design:frosted
Medium Nominal service life:60000 h
Nominal current:88 mA
Weighted energy consumption in 1,000 hours:20 kWh
Lamp wattage:20 W
Luminous flux:3100 lm
Lamp designation:T8
Min. Number of switching operations:200000
Beam angle:190 °
Rated luminous flux according to IEC 62612:3100 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:D
Short description:LED TUBE T8 UNIVERSAL P 1500 mm 20W 840

Characteristics

HABLEDTUBE T8 UN P 1500 20W 840
ManufacturerLEDVANCE Osram
HAN4099854026614
GTIN4099854026614
Glass/cover designMatte
Beam angle190°
Rated luminous flux according to IEC 626123100lm
Diameter27.80 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015D
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Color rendering index CRI80-89
Weight0,34
Weighted energy consumption in 1,000 hours20kWh
Weight unit kg
Short descriptionLED TUBE T8 UNIVERSAL P 1500 mm 20W 840
Lamp designationT8
Lamp power20W
Lamp luminous efficacy155lm/W
Power factor0.90
Light colour according to EN 12464-1Neutral white 3300 to 5300 K
Luminous flux3100lm
Length1513 mm
Min. number of switching operations200000
Average nominal life60000 hours
Nominal voltage220V
Rated current88mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG13
Voltage typeAC
