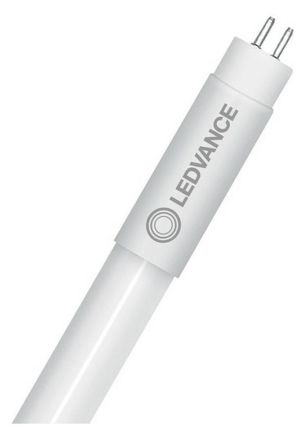

LEDVANCE Osram 4099854029110 LEDTUBE T5 HF HO49 P 1449 26W 830 LED tube LB23

In stock
SKU: 1062688
€24.12
Into a basketIn the basketGo

Overview

LED tubes for electronic ballasts. Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass lamp tube with splinter protection for applications e.g. in the food industry. High color consistency: 5 SDCM (threshold unit). Service life: up to 50,000 hours. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20. Compatible with many commercially available electronic ballasts (see also compatibility list). Product advantages: No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring. High luminous flux for demanding lighting tasks. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:1463 mm
Voltage type:AC
Nominal voltage:50 V
Photobiological safety according to EN 62471:RG0
Weight:0.21
Weight unit:KG
Color:white
Socket:G5
Diameter:16 mm
Lamp luminous efficacy:138 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:warm white
Glass/cover design:frosted
Medium Nominal lifetime:50000 h
Nominal current:460 mA
Weighted energy consumption in 1,000 hours:26 kWh
Lamp power:26 W
Luminous flux:3600 lm
Min. Number of switching operations:200000
Beam angle:190 °
Rated luminous flux according to IEC 62612:3600 lm
Energy efficiency index (EEI):0.11
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:E
Short description:LED TUBE T5 HF P 1449 mm 26W 830

Characteristics

Energy efficiency index (EEI)0.11
HABLEDTUBE T5 HF HO49 P 1449 26W 830
ManufacturerLEDVANCE Osram
HAN4099854029110
GTIN4099854029110
Glass/cover designMatte
Beam angle190°
Rated luminous flux according to IEC 626123600lm
Diameter16 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015E
ColorWhite
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
Weight0,21
Weighted energy consumption in 1,000 hours26 kWh
Weight unit kg
Short descriptionLED TUBE T5 HF P 1449 mm 26W 830
Lamp power26W
Lamp luminous efficacy138lm/W
Light colour according to EN 12464-1Warm white
Luminous flux3600lm
Length1463 mm
Min. number of switching operations200000
Average nominal life50000 hours
Nominal voltage50V
Rated current460mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG5
Voltage typeAC
LEDVANCE Osram 4099854029110 LEDTUBE T5 HF HO49 P 1449 26W 830 LED tube LB23
LEDVANCE Osram 4099854029110 LEDTUBE T5 HF HO49 P 1449 26W 830 LED tube LB23
