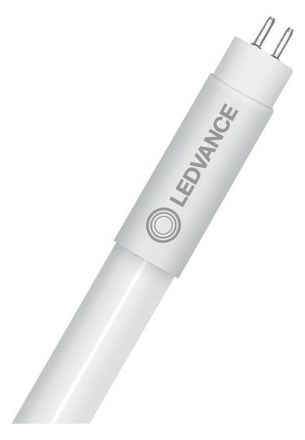

LEDVANCE Osram 4099854029486 LEDTUBE T5 HF HE14 P 549 7W 865 LED tube LB23

In stock
SKU: 1062678
€16.59
Into a basketIn the basketGo

Overview

LED tubes for electronic ballasts. Product features: Retrofit replacement of existing T5 lamps on HF ballasts. Glass lamp tube with splinter protection for applications e.g. in the food industry. High color consistency: 5 SDCM (threshold unit). Service life: up to 50,000 hours. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Protection class: IP20. Compatible with many commercially available electronic ballasts (see also compatibility list). Product advantages: No sagging thanks to glass technology. Simple, quick and safe lamp replacement without rewiring. High luminous flux for demanding lighting tasks. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Offices, public facilities. Supermarkets and department stores. Industry.

PropertyValue
Color temperature:6500 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:563 mm
Voltage type:AC
Nominal voltage:40 V
Photobiological safety according to EN 62471:RG0
Weight:0.09
Weight unit:KG
Color:white
Socket:G5
Diameter:16 mm
Lamp luminous efficacy:142 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:daylight white >,5300 K
Version Glass/cover:frosted
Average nominal lifetime:50000 h
Nominal current:185 mA
Weighted energy consumption in 1,000 hours:7 kWh
Lamp wattage:7 W
Luminous flux:1000 lm
Min. Number of switching operations:200000
Beam angle:190 °
Rated luminous flux according to IEC 62612:1000 lm
Energy efficiency index (EEI):0.10
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:E
Short description:LED TUBE T5 HF P 549 mm 7W 865

Characteristics

Energy efficiency index (EEI)0.10
HABLEDTUBE T5 HF HE14 P 549 7W 865
ManufacturerLEDVANCE Osram
HAN4099854029486
GTIN4099854029486
Glass/cover designMatte
Beam angle190°
Rated luminous flux according to IEC 626121000lm
Diameter16 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015E
ColorWhite
Color consistency (McAdam ellipse)SDCM5
Color temperature6500K
Color rendering index CRI80-89
Weight0,09
Weighted energy consumption in 1,000 hours7 kWh
Weight unit kg
Short descriptionLED TUBE T5 HF P 549 mm 7W 865
Lamp power7W
Lamp luminous efficacy142lm/W
Light colour according to EN 12464-1Daylight white >5300 K
Luminous flux1000lm
Length563 mm
Min. number of switching operations200000
Average nominal life50000 hours
Nominal voltage40V
Rated current185mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG5
Voltage typeAC
