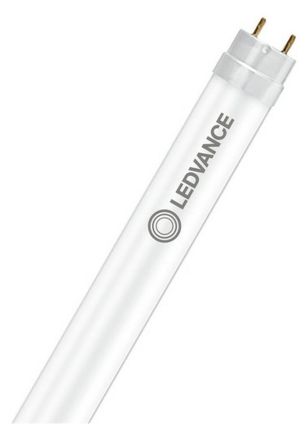

LEDVANCE Osram 4099854036897 LEDTUBE T8 EM P 1200 13.5W 830 LED tube LB23

In stock
SKU: 1062661
€11.53
Into a basketIn the basketGo

Overview

LED tubes for electromagnetic ballasts (KVG/WG), splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Single and tandem operation on conventional ballast (0.6 m version). Glass lamp tube with splinter protection for applications e.g. in the food industry. Mercury-free and RoHS compliant. Homogeneous illumination. Protection class: IP20. Product advantages: No sagging thanks to the glass tube. Simple, quick and safe lamp replacement without rewiring. Energy savings of up to 66% (compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore ideal in combination with sensors. Very high switching strength. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+50°C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical equipment: Suitable for operation with low-loss and conventional ballasts.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:1212 mm
Voltage type:AC
Nominal voltage:220 V
Power factor:0.90
Photobiological safety according to EN 62471:RG0
Weight:0.22
Weight unit:KG
Socket:G13
Diameter:26.70 mm
Lamp luminous efficacy:140 lm/W
Light color according to EN 12464-1:warm white
Glass/cover design:frosted
Average nominal service life:60000 h
Nominal current:60 mA
Weighted energy consumption in 1,000 hours:14 kWh
Lamp power:13.5 W
Luminous flux:1890 lm
Lamp designation:T8
Min. Number of switching operations:200000
Rated luminous flux according to IEC 62612:1890 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:D
Short description:LED TUBE T8 EM P 1200 mm 13.5W 830

Characteristics

HABLEDTUBE T8 EM P 1200 13.5W 830????
ManufacturerLEDVANCE Osram
HAN4099854036897
GTIN4099854036897
Glass/cover designMatte
Rated luminous flux according to IEC 626121890 lm
Diameter26.70 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015D
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
Weight0,22
Weighted energy consumption in 1,000 hours14 kWh
Weight unit kg
Short descriptionLED TUBE T8 EM P 1200 mm 13.5W 830
Lamp designationT8
Lamp power13.5W
Lamp luminous efficacy140lm/W
Power factor0.90
Light colour according to EN 12464-1Warm white
Luminous flux1890 lm
Length1212 mm
Min. number of switching operations200000
Average nominal life60000 hours
Nominal voltage220V
Rated current60mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG13
Voltage typeAC
