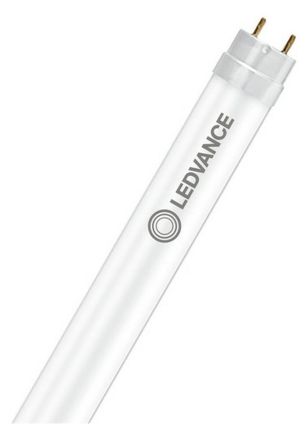

LEDVANCE Osram 4099854037078 LEDTUBE T8 EM P 1500 20W 830 LED tube LB23

In stock
SKU: 1062664
€13.23
Into a basketIn the basketGo

Overview

LED tubes for electromagnetic ballasts (KVG/WG), splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Single and tandem operation on conventional ballast (0.6 m version). Glass lamp tube with splinter protection for applications e.g. in the food industry. Mercury-free and RoHS compliant. Homogeneous illumination. Protection class: IP20. Product advantages: No sagging thanks to the glass tube. Simple, quick and safe lamp replacement without rewiring. Energy savings of up to 66% (compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore ideal in combination with sensors. Very high switching strength. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+50°C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical equipment: Suitable for operation with low-loss and conventional ballasts.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:1513 mm
Voltage type:AC
Nominal voltage:220 V
Power factor:0.90
Photobiological safety according to EN 62471:RG0
Weight:0.26
Weight unit:KG
Socket:G13
Diameter:26.70 mm
Lamp luminous efficacy:139 lm/W
Light color according to EN 12464-1:warm white
Glass/cover design:frosted
Average nominal service life:60000 h
Nominal current:90 mA
Weighted energy consumption in 1,000 hours:20 kWh
Lamp power:20 W
Luminous flux:2790 lm
Lamp designation:T8
Min. Number of switching operations:200000
Rated luminous flux according to IEC 62612:2790 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:D
Short description:LED TUBE T8 EM P 1500 mm 20W 830

Characteristics

HABLEDTUBE T8 EM P 1500 20W 830??????
ManufacturerLEDVANCE Osram
HAN4099854037078
GTIN4099854037078
Glass/cover designMatte
Rated luminous flux according to IEC 626122790lm
Diameter26.70 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015D
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
Weight0,26
Weighted energy consumption in 1,000 hours20kWh
Weight unit kg
Short descriptionLED TUBE T8 EM P 1500 mm 20W 830
Lamp designationT8
Lamp power20W
Lamp luminous efficacy139lm/W
Power factor0.90
Light colour according to EN 12464-1Warm white
Luminous flux2790lm
Length1513 mm
Min. number of switching operations200000
Average nominal life60000 hours
Nominal voltage220V
Rated current90mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG13
Voltage typeAC
