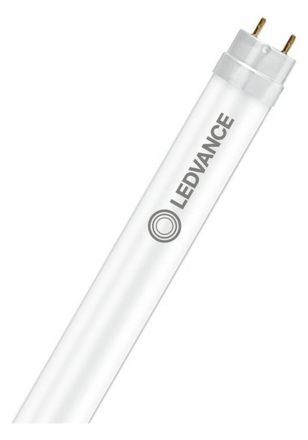

LEDVANCE Osram 4099854037214 LEDTUBE T8 EM UO S 1500 22.2W 830 LED tube LB23

In stock
SKU: 1062800
€16.54
Into a basketIn the basketGo

Overview

Powerful LED tubes for electromagnetic ballasts (KVG/VVG), splinter protection. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Glass lamp tube with splinter protection for applications e.g. in the food industry. ENEC 10 VDE mark. For particularly homogeneous illumination. Service life: up to 75,000 hours. Protection class: IP20. Mercury-free and RoHS compliant. Product advantages: No sagging thanks to glass tube. Splinter protection thanks to special PET coating. Support in the implementation of HACCP concepts from production to product presentation. Very high switching strength. High luminous flux for demanding lighting tasks. Simple, quick and safe lamp replacement without rewiring. Energy savings of up to 62% (compared to T8 fluorescent lamp). Full brightness without warm-up phase, therefore ideally suited in combination with sensors. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+50°C. Lighting in industrial production. Traffic zones and corridors. Supermarkets and department stores. Industry. Technical equipment: Suitable for operation with low-loss and conventional ballasts.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP20
Length:1513.00 mm
Voltage type:AC
Nominal voltage:220 - 240 V
Power factor:0.90
Photobiological safety according to EN 62471:RG0
Weight:0.3
Weight unit:KG
Socket:G13
Diameter:26.70 mm
Lamp luminous efficacy:166 lm/W
Light color according to EN 12464-1:warm white
Glass/cover design:frosted
Average nominal service life:75000 h
Nominal current:100 mA
Weighted energy consumption in 1,000 hours:23.00 kWh
Lamp wattage:22.2 W
Luminous flux:3690 lm
Lamp designation:T8
Min. Number of switching operations:200000
Rated luminous flux according to IEC 62612:3690 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:C
Short description:LED TUBE T8 EM ULTRA OUTPUT S 1500 mm 22.2W 830

Characteristics

HABLEDTUBE T8 EM UO S 1500 22.2W 830
ManufacturerLEDVANCE Osram
HAN4099854037214
GTIN4099854037214
Glass/cover designMatte
Rated luminous flux according to IEC 626123690lm
Diameter26.70 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015C
Color consistency (McAdam ellipse)SDCM5
Color temperature3000K
Color rendering index CRI80-89
Weight0,3
Weighted energy consumption in 1,000 hours23.00 kWh
Weight unit kg
Short descriptionLED TUBE T8 EM ULTRA OUTPUT S 1500 mm 22.2W 830
Lamp designationT8
Lamp power22.2W
Lamp luminous efficacy166lm/W
Power factor0.90
Light colour according to EN 12464-1Warm white
Luminous flux3690lm
Length1513.00 mm
Min. number of switching operations200000
Average nominal life75000 hours
Nominal voltage220 - 240V
Rated current100mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG13
Voltage typeAC
