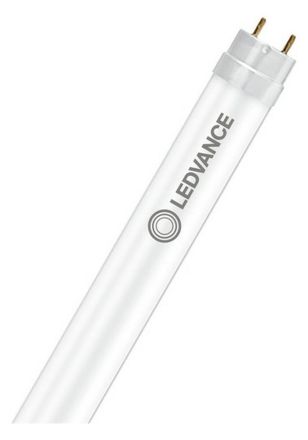

LEDVANCE Osram 4099854039065 LEDTUBE T8 EM V 720 7W 865 LED tube LB23

In stock
SKU: 1062637
€6.36
Into a basketIn the basketGo

Overview

Cost-efficient LED tubes for electromagnetic ballasts (KVG/VVG). Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Low flicker according to EU 2019/2020 (SVM 0.4 / PstLM 1). Single and tandem operation on conventional ballast (versions 0.9 m). Glass tube. Mercury-free and RoHS compliant. Homogeneous illumination. Protection class: IP20. Product advantages: No sagging thanks to the glass tube. Energy savings of up to 69% (compared to T8 fluorescent lamp). Simple, quick and safe lamp replacement without rewiring. Full brightness without warm-up phase, therefore ideal in combination with sensors. Very high switching strength. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Corridors, stairwells and parking garages. Industry. Warehouses. Cold storage and storage rooms. Household applications. Supermarkets and department stores. Technical equipment: Suitable for operation with low-loss and conventional ballasts.

PropertyValue
Color temperature:6500 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM6
Protection class (IP):IP20
Length:734 mm
Voltage type:AC
Nominal voltage:220 V
Power factor:0.90
Photobiological safety according to EN 62471:RG0
Weight:0.14
Weight unit:KG
Color:white
Socket:G13
Diameter:26.80 mm
Lamp luminous efficacy:121 lm/W
Lamp shape:Tube, double-ended
Light color according to EN 12464-1:daylight white >,5300 K
Version Glass/cover:frosted
Average nominal service life:30,000 h
Nominal current:33 mA
Weighted energy consumption in 1,000 hours:7 kWh
Lamp wattage:7 W
Luminous flux:850 lm
Lamp designation:T8
Min. Number of switching operations:200000
Rated luminous flux according to IEC 62612:850 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:E
Short description:LED TUBE T8 EM V 720 mm 7W 865

Characteristics

HABLEDTUBE T8 EM V 720 7W 865
ManufacturerLEDVANCE Osram
HAN4099854039065
GTIN4099854039065
Glass/cover designMatte
Rated luminous flux according to IEC 62612850lm
Diameter26.80 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015E
ColorWhite
Color consistency (McAdam ellipse)SDCM6
Color temperature6500K
Color rendering index CRI80-89
Weight0,14
Weighted energy consumption in 1,000 hours7 kWh
Weight unit kg
Short descriptionLED TUBE T8 EM V 720 mm 7W 865
Lamp designationT8
Lamp power7W
Lamp luminous efficacy121lm/W
Power factor0.90
Light colour according to EN 12464-1Daylight white >5300 K
Luminous flux850lm
Length734 mm
Min. number of switching operations200000
Average nominal life30000 hours
Nominal voltage220V
Rated current33mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG13
Voltage typeAC
LEDVANCE Osram 4099854039065 LEDTUBE T8 EM V 720 7W 865 LED tube LB23
