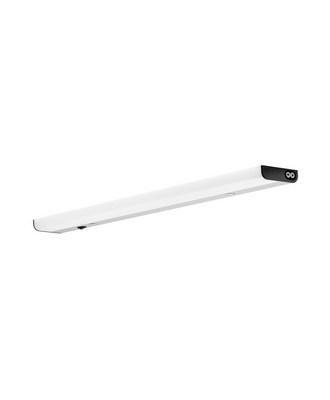

LEDVANCE Osram 4058075264410 LINEAR LED FLAT SENSOR 830 8X1 LED under-cabinet light LB20

LEDVANCE Osram 4058075264410 LINEAR LED FLAT SENSOR 830 8X1 LED under-cabinet light LB20

In stock

SKU: 732192

Price on request

€24.44

€0

Overview

Product advantages: Linking of up to 43 lights (ECO version) or 18 lights (sensor version), various accessories included: cable and EU plug, area of application: under-shelf lighting, beam angle 120°, with proximity sensor and cable with EU plug

Property	Value
Max. System power:	12.00 W
Rated luminous flux according to IEC 62722-2-1:	760 lm
Length:	527.0 mm
Width:	67.0 mm
Height/depth:	19.0 mm
Protection class (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Silver
Housing material:	Aluminum
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With motion detector:	yes
Beam angle:	extremely wide beam>80°
With light source:	no
Light source:	LED not replaceable
Connection type:	Flat plug
With operating device:	yes
Cover material:	Plastic, matt/satin
Without dimming function:	yes
With light sensor:	no
Operating device:	EVG
Suitable for recessed installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
LED nominal current at constant current:	100 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on Operating device:	no
Luminaire luminous efficacy:	63 lm/W
Power factor:	0.5

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

HABLINEAR LED FLAT SENSOR 830 8X1

Manufacturer

HAN4058075264410

GTIN4058075264410

Covering the luminaire with thermal insulation material possibleNo

Connection typeFlat plug

Rated luminous flux according to IEC 62722-2-1760lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width67.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorSilver

Height/Depth19.0 mm

LED nominal current at constant current100mA

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy63lm/W

LampsLED not replaceable

Light colorWhite

Length527.0 mm

Max. system performance12.00 W

With operating deviceYes

With motion detectorYes

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

IP protection)IP20

Protection classII

Voltage type

Cover materialPlastic matt/satin

Housing materialAluminum
