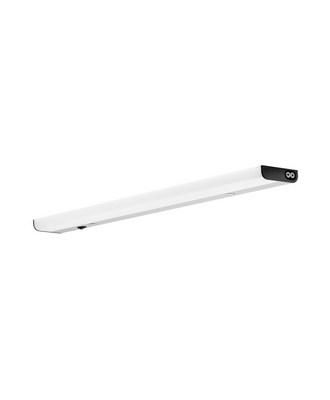

LEDVANCE Osram 4058075264618 LINEAR LED FLAT SENSOR 840 8X1 LED under-cabinet light LB20

LEDVANCE Osram 4058075264618 LINEAR LED FLAT SENSOR 840 8X1 LED under-cabinet light LB20

In stock

SKU: 732193

Price on request

€27.49

€0

Overview

Product advantages: Linking of up to 43 lights (ECO version) or 18 lights (sensor version), various accessories included: cable and EU plug, areas of application: under-shelf lighting, beam angle 120°, with proximity sensor and cable with EU plug

Property	Value
Max. System power:	12.00 W
Rated luminous flux according to IEC 62722-2-1:	840 lm
Length:	527.0 mm
Height/depth:	19.0 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Silver
Material of the housing:	Aluminum
Color temperature:	4000 K
Color rendering index CRI:	80-89
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With light source:	no
With operating device:	yes
Material of the cover:	Plastic matt/satin
Without dimming function:	yes
Operating device:	EVG
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for emergency lighting:	no
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in device):	no
LED nominal current at constant current:	100 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	70 lm/W
Power factor:	0.5

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

HABLINEAR LED FLAT SENSOR 840 8X1

Manufacturer

HAN4058075264618

GTIN4058075264618

Rated luminous flux according to IEC 62722-2-1840lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Housing colorSilver

Height/Depth19.0 mm

LED nominal current at constant current100mA

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy70lm/W

Light colorWhite

Length527.0 mm

Max. system performance12.00 W

With operating deviceYes

With light sourceNo

Nominal voltage

Without dimming functionYes

IP protection)IP20

Protection classII

Voltage type

Cover materialPlastic matt/satin

Housing materialAluminum

LEDVANCE Osram 4058075264618 LINEAR LED FLAT SENSOR 840 8X1 LED under-cabinet light LB20
