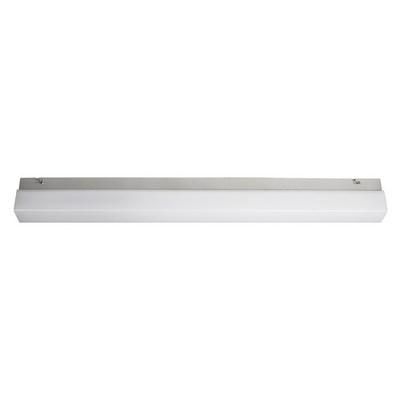

LEDVANCE Osram 4058075399624 LED SQUARE 14WIP44 930-940CLICK-CCTLEDV LED under-cabinet light

LEDVANCE Osram 4058075399624 LED SQUARE 14WIP44 930-940CLICK-CCTLEDV LED under-cabinet light

In stock

SKU: 732234

Price on request

€39.54

€0

Overview

Lights with two adjustable color temperatures via wall switch. Product features: Color temperature can be selected via wall switch (3000 K, 4000 K). Protection class: IP44. Product advantages: Uniform surface illumination. Simple and quick installation. Areas of application: Wall and ceiling mounting. Bathroom (IP44). Indoor applications. Technical equipment: Complete mounting and connection accessories included.

Property	Value
Max. System power:	14.00 W
Rated luminous flux according to IEC 62722-2-1:	1250 lm
Length:	600.0 mm
Width:	40.0 mm
Height/depth:	70.0 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With motion detector:	no
With light source:	no
Light source:	LED not replaceable
Connection type:	other
With control gear:	yes
Cover material:	Plastic, matt/satin
Without dimming function:	yes
With light sensor:	no
Control gear:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
LED nominal current at constant current:	122 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Luminaire luminous efficacy:	89 lm/W
Power factor:	0.5

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

HABLED SQUARE 14WIP44 930-940CLICK-CCTLEDV

Manufacturer

HAN4058075399624

GTIN4058075399624

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Execution of the gridFrosted

Rated luminous flux according to IEC 62722-2-11250lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width40.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth70.0 mm

LED nominal current at constant current122mA

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy89lm/W

LampsLED not replaceable

Light colorWhite

Length600.0 mm

Max. system performance14.00 W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

IP protection)IP44

Protection classII

Voltage type

Cover materialPlastic matt/satin

Housing materialAluminum

LEDVANCE Osram 4058075399624 LED SQUARE 14WIP44 930-940CLICK-CCTLEDV LED under-cabinet light

Price on request

€39.54

€0
