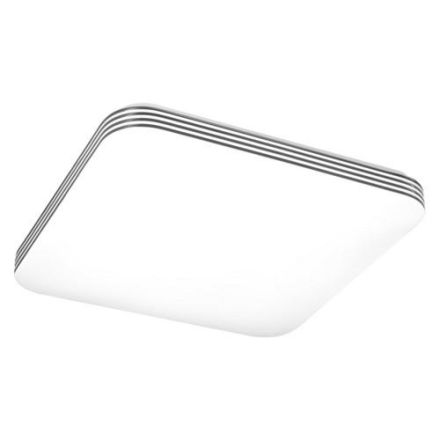

LEDVANCE Osram 4058075472815 ORBIS SQUARE 430 SQ50W830 CLICKSEN LED wall / ceiling light

LEDVANCE Osram 4058075472815 ORBIS SQUARE 430 SQ50W830 CLICKSEN LED wall / ceiling light

In stock

SKU: 842020

Price on request

€69.23

€0

Overview

Lights can be activated using sensor mode or a conventional wall switch. Product features: Lights can be activated using sensor mode or a conventional wall switch. The operating mode can be easily changed with three clicks of the wall switch. Motion sensor (microwave technology) with adjustable detection parameters. Product advantages: Simple and quick installation. Areas of application: Corridors, entrance areas. Technical equipment: Complete installation and connection accessories included

Property	Value
Max. System power:	50.00 W
Rated luminous flux according to IEC 62722-2-1:	3700 lm
Length:	430.00 mm
Width:	430.00 mm
Height/depth:	80.00 mm
Protection class (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	steel
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	yes
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
With light sensor:	yes
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	30000 h
Luminaire luminous efficacy:	74 lm/W
Power factor:	0.70
Wiring type:	Termination
Number of poles:	2

Characteristics

HABORBIS SQUARE 430 SQ50W830 CLICKSEN

Manufacturer

HAN4058075472815

GTIN4058075472815

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-13700lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width430.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth80.00 mm

Power factor0.70

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy74lm/W

Light emissionDirect

Light colorWhite

Length430.00 mm

Max. system performance50.00W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

IP protection)IP20

Protection classII

Voltage type

Housing materialSteel
