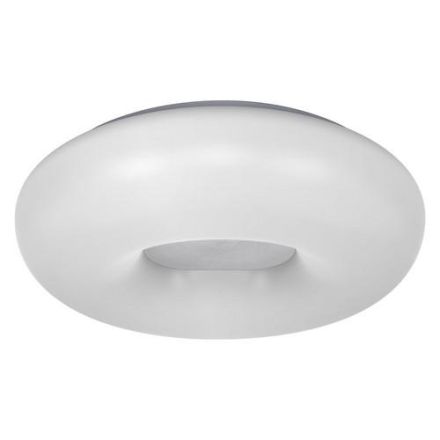

LEDVANCE Osram 4058075486300 SMART WIFI ORBIS DONUT RD 400 TW WT LED wall / ceiling light LB21

LEDVANCE Osram 4058075486300 SMART WIFI ORBIS DONUT RD 400 TW WT LED wall / ceiling light LB21

In stock

SKU: 842441

Price on request

€71.15

€0

Overview

Decorative ceiling lights with WiFi technology. Product features: Can be controlled via the LEDVANCE SMART+ WiFi app (with at least AndroidT 4.4 or iOS 9.0). Can be controlled via Google Assistant or Amazon Alexa. Color temperature adjustable via Tunable White: 3,000.6,500 K. Dimmable. Network protocol: WiFi. Product advantages: Easy and quick installation. Areas of application: Indoor applications. Kitchen, living room, children's room or study. Technical equipment: Support bracket included. Includes mounting screws and dowels. Control via app or voice control requires a compatible smart home system. A smartphone or tablet is required for control via the LEDVANCE SMART + WiFi app

Property	Value
Max. System power:	26.00 W
Rated luminous flux according to IEC 62722-2-1:	1150 lm
Length:	400.00 mm
Height/depth:	85.00 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Color temperature:	3000 to 6500 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	400.00 mm
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Screw terminal
With operating device:	yes
Without dimming function:	no
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming Potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	30000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	93 lm/W
Power factor:	0.90
Type of wiring:	Termination
Number of poles:	3

Characteristics

HABSMART WIFI ORBIS DONUT RD 400 TW WT

Manufacturer

HAN4058075486300

GTIN4058075486300

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridFrosted

Outer diameter400.00 mm

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-11150lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth85.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy93lm/W

LampsLED not replaceable

Light emissionDirect

Length400.00 mm

Max. system performance26.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionNo

Number of poles3

IP protection)IP20

Protection classI

Voltage type

LEDVANCE Osram 4058075486300 SMART WIFI ORBIS DONUT RD 400 TW WT LED wall / ceiling light LB21

Price on request

€71.15

€0
