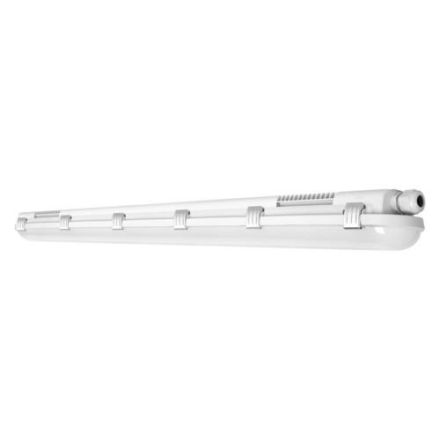

LEDVANCE Osram 4058075541962 DP S 1200 32W 840 IP65 GY LED moisture-proof luminaire

LEDVANCE Osram 4058075541962 DP S 1200 32W 840 IP65 GY LED moisture-proof luminaire

In stock

SKU: 842673

Price on request

€103.72

€0

Overview

Damp-proof lights, classic design with high-frequency sensor. Product features: High-frequency sensor for daylight and motion detection. Sensor with master-slave and master-master functionality. High light output: up to 139 lm/W. Beam angle: 110°. Product advantages: Installation of a larger number of sensor-controlled lights possible thanks to the master-slave and master-master functionality. Multiple setting options for sensor range, daylight detection and hold time. Low-flicker light 10%. Easy installation, tool-free connection. 5-year guarantee. Areas of application: Industrial and storage areas. Parking lots and underpasses. Garages. Workshops, production lines. Technical equipment: Holding bracket, anti-theft protection, suspension bracket, second cable gland and 2 grommets included.

Property	Value
Max. System power:	32.00 W
Rated luminous flux according to IEC 62722-2-1:	4400 lm
Length:	1200.00 mm
Width:	82.00 mm
Height/depth:	68.00 mm
Protection class (IP):	IP65
Protection class:	I
Nominal voltage:	220 to 240 V
Housing color:	gray
Material of Housing:	Plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	yes
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct
With light sensor:	yes
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	other
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Rated service life L70/B50 at 25 °C:	70000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	138 lm/W
Power factor:	0.90
Type of wiring:	suitable for through wiring
Number of poles:	5

Characteristics

HABDP S 1200 32W 840 IP65 GY

Manufacturer

HAN4058075541962

GTIN4058075541962

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridOther

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-14400lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width82.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Housing colorGray

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth68.00 mm

Power factor0.90

Luminaire luminous efficacy138lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length1200.00 mm

Max. system performance32.00W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles5

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage type

Cover materialPlastic opal

Housing materialPlastic
