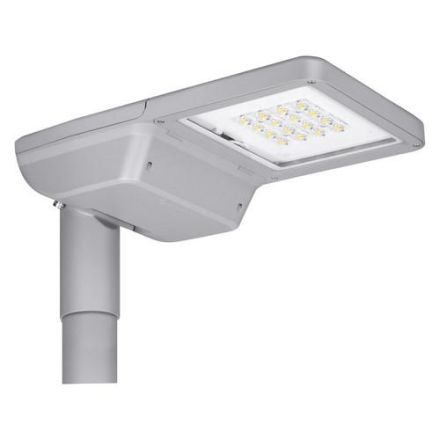

LEDVANCE Osram 4058075552234 SL FLEX SM P 13W 727 RV25ST WAL LED mast luminaire

In stock
SKU: 842542
€265.62
Into a basketIn the basketGo

Overview

Light distribution for general street lighting. Product features: Light distribution for streets with a similar road width to the light point height. Very long service life (L90/B10): up to 100,000 h (at 25°C). Mast adapter for 48-60 mm spigot size included in delivery. Additional reduction for 42 mm and adapter for 76 mm masts available separately. Adjustable mast adapter, suitable for mast side-entry and mast top mounting. +/- 15° tilt adjustment, with closed housing. High light output: up to 144 lm/W. Ambient temperature range during operation: -40.50 °C. High overvoltage protection of up to 10 kV (L/N-GND). Protection class: II. Product advantages: Robust design and highest component quality for long-lasting product performance. Fast and easy mains connection, thanks to tool-free housing opening and push-button connection terminal. High light homogeneity. 3 light colors for optimal lighting of a wide variety of environments. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Automatic power interruption when the housing is opened. 5-year guarantee. Areas of application: Outdoor use (IP66). Roads of classes M, C and P in accordance with EN 13201. Parking lots. Public spaces. Industry. Technical equipment: Mast adapter for 42 and 76 mm spigot size available separately

PropertyValue
Length:445.00 mm
Width:250.00 mm
Height/Depth:90.00 mm
Max. System power:13.00 W
Rated luminous flux according to IEC 62722-2-1:1650 lm
Color temperature:2700 K
Suitable for spigot size:60 mm
Nominal voltage:220 to 240 V
Operating device:EVG
With light source:yes
Light source:LED not replaceable
Socket:without
Protection class (IP):IP66
Protection class:II
Impact resistance:IK08
Mounting type:Attachment
Color rendering index CRI:70-79
Voltage type:AC
With control gear:yes
Adjustable optics:no
Housing material:aluminum
Remote control:without
Constant luminous flux control:no
Light color:white
With connection cable:no
With radio control:no
With program-controlled light control:no
Surface:powder-coated
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in device):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Rated service life L70/B50 at 25 °C:100000 h
Light distributor:Focus lens
Luminaire with limited surface temperature 'D-mark':no
Rated ambient temperature according to IEC62722-2-1:-40 to 50 °C
Luminaire luminous efficacy:127 lm/W
Power factor:0.90
Wiring type:Termination
Number of poles:2
Connection type:Plug terminal

Characteristics

HABSL FLEX SM P 13W 727 RV25ST WAL
ManufacturerLEDVANCE Osram
HAN4058075552234
GTIN4058075552234
Connection typePlug-in terminal
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C100000 hours
Rated luminous flux according to IEC 62722-2-11650lm
Rated ambient temperature according to IEC62722-2-1-40 to 50 °C
Operating deviceElectronic ballast
Width250.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature2700K
Color rendering index CRI70-79
VersionWithout
Remote controlWithout
Suitable for braid size60 mm
Height/Depth90.00 mm
Constant luminous flux controlNo
Power factor0.90
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy127lm/W
LampsLED not replaceable
Light colorWhite
Light distributorFocus lens
Length445.00 mm
Max. system performance13.00 W
With connection cableNo
With operating deviceYes
With radio controlNo
With light sourceYes
With program-controlled lighting controlNo
Mounting typeEssay
Nominal voltage220 to 240 V
SurfacePowder coated
Without dimming functionYes
Number of poles2
Impact resistanceIK08
IP protection)IP66
Protection classII
Voltage typeAC
Housing materialAluminum
