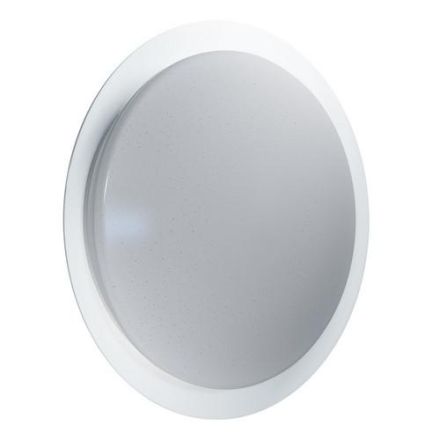

LEDVANCE Osram 4058075633193 ORBIS SPARKLE 560MM 32W REMOTE-CCT LED wall / ceiling light

LEDVANCE Osram 4058075633193 ORBIS SPARKLE 560MM 32W REMOTE-CCT LED wall / ceiling light

In stock

SKU: 842829

Price on request

€65.81

€0

Overview

LED ceiling lights with a highlight effect. Product features: Ceiling light with advanced LED technology. Circular light emission. Product advantages: Very homogeneous light. Simple and quick installation. Areas of application: For interior lighting only. Decorative home lighting. Ceiling and wall mounting. Technical equipment: Complete assembly and connection accessories included

Property	Value
Max. System power:	38.00 W
Rated luminous flux according to IEC 62722-2-1:	2800 lm
Length:	560 mm
Width:	560 mm
Height/depth:	120.00 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	2800 to 6000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	560 mm
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
Cover material:	Opal plastic
Without dimming function:	no
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Suitable for computer workstations according to EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	30000 h
Luminaire luminous efficacy:	95 lm/W
Power factor:	0.5
Type of Wiring:	Termination
Number of poles:	2

Characteristics

HABORBIS SPARKLE 560MM 32W REMOTE-CCT

Manufacturer

HAN4058075633193

GTIN4058075633193

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Outer diameter560 mm

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-12800lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width560 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth120.00 mm

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

Light emissionDirect

Length560 mm

Max. system performance38.00W

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum
