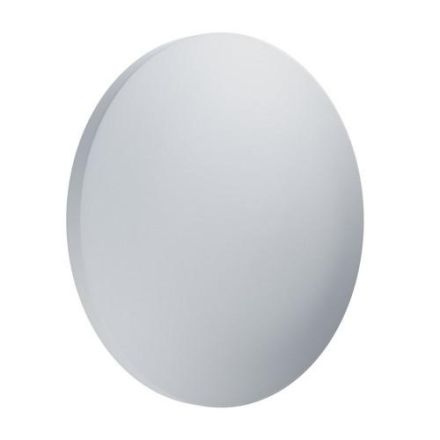

LEDVANCE Osram 4058075651814 ORBIS IP44 300MM 15.5W 830 SENSOR LED wall / ceiling light

LEDVANCE Osram 4058075651814 ORBIS IP44 300MM 15.5W 830 SENSOR LED wall / ceiling light

In stock

SKU: 842822

Price on request

€33.30

€0

Overview

Splash-proof LED ceiling light with sensor. Product features: Ceiling light with advanced LED technology. Circular light emission. Protection class: IP44. Adjustable daylight and infrared motion sensor. Product advantages: Very homogeneous light. Simple and quick installation. Areas of application: Hallways / corridors. Bathrooms. Ceiling and wall mounting. Outdoor applications (covered areas) in private areas. Technical equipment: Complete assembly and connection accessories included

Property	Value
Max. System power:	15.50 W
Rated luminous flux according to IEC 62722-2-1:	1100 lm
Length:	300 mm
Height/depth:	83.00 mm
Protection class (IP):	IP44
Protection class:	I
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	300 mm
Voltage type:	AC
With motion detector:	yes
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Without dimming function:	yes
Light emission:	indirect
With light sensor:	yes
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	25000 h
Luminaire luminous efficacy:	80 lm/W
Power factor:	0.5
Wiring type:	Termination
Number of poles:	2

Characteristics

HABORBIS IP44 300MM 15.5W 830 SENSOR

Manufacturer

HAN4058075651814

GTIN4058075651814

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Outer diameter300 mm

Rated lifetime L70/B50 at 25 °C25000 hours

Rated luminous flux according to IEC 62722-2-11100lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth83.00 mm

Power factor0.5

Luminaire luminous efficacy80lm/W

Light emissionIndirect

Light colorWhite

Length300 mm

Max. system performance15.50W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP44

Protection classI

Voltage type

Cover materialPlastic opal

Housing materialAluminum

LEDVANCE Osram 4058075651814 ORBIS IP44 300MM 15.5W 830 SENSOR LED wall / ceiling light

Price on request

€33.30

€0
