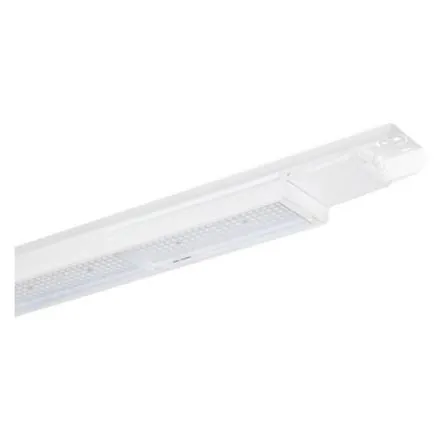

Low-bay lights with an attractive linear design, up to 155 lm/W. Product features: Different luminous fluxes and opening angles for mounting heights from ~ 4 m to ~ 10 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 hours. High color consistency: 3 SDCM. Product advantages: Economical thanks to high luminous efficacy of up to 155 lm/W. Simple and quick installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal. Modern and robust design. 5-year guarantee. Areas of application: Replacement for lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industrial and storage areas. Discount stores, supermarkets. Technical equipment: Suspension set available as a separate accessory.
| Property | Value |
| Max. System power: | 42 W |
| Rated luminous flux according to IEC 62722-2-1: | 6510 lm |
| Protection class: | I |
| Impact resistance: | IK08 |
| Protection class (IP): | IP23 |
| Housing color: | white |
| Color temperature: | 4000 K |
| Light source: | LED not replaceable |
| Length: | 1236 mm |
| Width: | 115.00 mm |
| Height/Depth: | 65.00 mm |
| Socket: | without |
| With light source: | yes |
| Nominal voltage: | 220 to 240 V |
| DALI dimming: | yes |
| Light color: | white |
| With operating device: | yes |
| Voltage type: | AC |
| Suitable for emergency lighting: | no |
| With protective cover: | no |
| Reflector: | without |
| Ball-proof: | no |
| Luminaire with limited surface temperature 'D-mark': | no |
| Color rendering index CRI: | 80-89 |
| Light distribution: | symmetrical |
| Suitable for secondary lamps: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming trailing edge phase control: | no |
| Dimming leading edge phase control: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming line switch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming sine wave reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 100000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Rated ambient temperature according to IEC62722-2-1: | -25 to 50 °C |
| Power factor: | 0.90 |
| Wiring type: | suitable for through wiring |
| Number of poles: | 7 |
