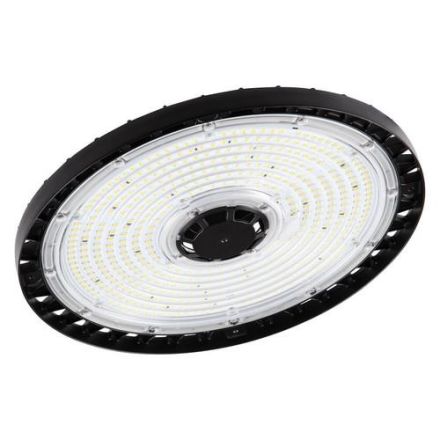

LEDVANCE Osram 4058075692794 HB P 147W 840 110DEG IP65 LED high bay luminaire

LEDVANCE Osram 4058075692794 HB P 147W 840 110DEG IP65 LED high bay luminaire

In stock

SKU: 842689

Price on request

€214.26

€0

Overview

High bay luminaires up to 150 lm/W and attractive UGR values. Product features: Different luminous fluxes and opening angles for mounting heights from ~ 6 m to 14 m in 4000 K or 6500 K. Product advantages: Improved UGR compared to previous generations, up to UGR 22 in combination with reflector. High luminous efficacy. Up to 64% energy savings compared to conventional high bay luminaires. 5-year guarantee. Weight and size optimization through compact design. Areas of application: Replacement for high bay luminaires with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, commercial buildings, lobbies). Technical equipment: Mounting ring included. Mounting brackets, reflectors and refractors available as separate accessories.

Property	Value
Max. system power:	147.00 W
Rated luminous flux according to IEC 62722-2-1:	22000 lm
Protection class:	I
Impact resistance:	IK08
Protection rating (IP):	IP65
Housing color:	black
Color temperature:	4000 K
Light source:	LED not replaceable
Length:	321.00 mm
Height/Depth:	152.00 mm
Socket:	without
With light source:	yes
Operating device:	EVG
Nominal voltage:	220 to 240 V
DALI dimming:	no
Light color:	white
With operating device:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Material of the housing:	aluminium
With protective cover:	yes
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	yes
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming potentiometer (integrated in the device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	without
Rated service life L70/B50 at 25 °C:	80000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Power factor:	0.95
Outer diameter:	321.00 mm
Type of wiring:	Termination
Number of poles:	3
Conductor cross-section:	1.0 mm²
Connection type:	other

Characteristics

HABHB P 147W 840 110DEG IP65

Manufacturer

HAN4058075692794

GTIN4058075692794

Connection typeOther

Type of wiringDiploma

Outer diameter321.00 mm

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-122000lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceElectronic ballast

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth152.00 mm

Power factor0.95

Conductor cross-section1.0 mm²

Luminaire with limited surface temperature D-markYes

LampsLED not replaceable

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length321.00 mm

Max. system performance147.00W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage type

Housing materialAluminum
