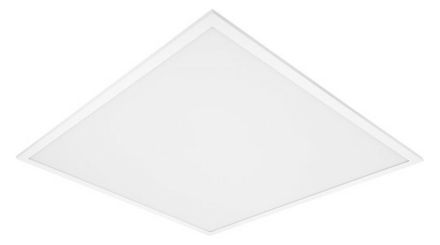

LEDVANCE Osram 4058075694521 PL CMFT 625 P 36W 930940 U19 DALIVR LED recessed luminaire

LEDVANCE Osram 4058075694521 PL CMFT 625 P 36W 930940 U19 DALIVR LED recessed luminaire

In stock

SKU: 1061924

Price on request

€134.88

€0

Overview

Square insert luminaires with Ra90, selectable light color (CS) and strong glare control, for 600 x 600 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-capable luminaire with DALI-2 technology. Frame made of extruded aluminum. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Service life (L80/B10): up to 60,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. High technical performance with CRI90 and up to 118 lm/W. Very versatile thanks to a selectable light color (CCT Select - CS). High color consistency with SDCM 3. Good glare control (UGR

Property	Value
Rated luminous flux according to IEC 62722-2-1:	4200 lm
Color temperature:	4000 K
Color rendering index CRI:	90-100
Color consistency (McAdam ellipse):	SDCM3
Protection class (IP):	IP40
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 50 °C
Length:	620.00 mm
Width:	620.00 mm
Height/Depth:	80.0 mm
Voltage type:	AC/DC
Rated voltage:	220 - 240 V
Max. System power:	36.00 W
Luminaire luminous efficacy:	118 lm/W
With control gear:	yes
Control gear:	EVG
DALI dimming:	yes
Connection type:	Plug-in terminal
Number of poles:	5
Type of wiring:	suitable for through-wiring
With Light source:	yes
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	2.25
Weight unit:	KG
Version of the Grid:	high gloss
Installation width:	600.0 mm
Suitable for emergency lighting:	yes
Suitable for recessed mounting:	yes
Rated service life L70/B50 at 25 °C:	100000 h
Installation height/depth:	80.0 mm
Installation length:	600.0 mm
Nominal current:	165,000 mA
Color temperature adjustable:	levels
Replaceable Operating device:	yes
Max. number of lights circuit breaker C16:	33
Max. number of lights circuit breaker B16:	20
Surface protection housing:	powder-coated
Brief description:	PANEL COMFORT 625 UGR<,19 DALI CS CRI90 36W 930 940 U19 DALIVR CS CRI90

Characteristics

HABPL CMFT 625 P 36W 930940 U19 DALIVR

Manufacturer

HAN4058075694521

GTIN4058075694521

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-14200lm

Rated ambient temperature according to IEC62722-2-1-10 - 50 °C

Operating deviceElectronic ballast

Width620.00 mm

Dimming DALIYes

Installation width600.0 mm

Installation height/depth80.0 mm

Installation length600.0 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature

Color temperature adjustableStages

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight2,25

Weight unit kg

Height/Depth80.0 mm

Short descriptionPANEL COMFORT 625 UGR<,19 DALI CS CRI90 36W 930 940 U19 DALIVR CS CRI90

Luminaire luminous efficacy118lm/W

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Length620.00 mm

Max. number of luminaires Circuit breaker B1620

Max. number of luminaires Circuit breaker C1633

Max. system performance36.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current165,000mA

Surface protection housingPowder coated

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK02

IP protection)IP40

Protection classII

Voltage type
