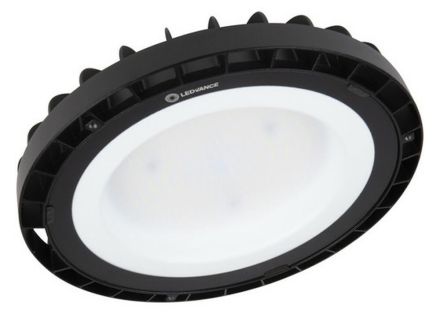

LEDVANCE Osram 4058075708228 HB COMP V 166W 865 110DEG IP65 VS1 LED high bay luminaire

LEDVANCE Osram 4058075708228 HB COMP V 166W 865 110DEG IP65 VS1 LED high bay luminaire

In stock

SKU: 1061930

Price on request

€184.60

€0

Overview

Hall lights up to 120 lm/W. Product features: Ambient temperature: -20.45°C. Black aluminum housing, safety glass cover. Opal cover. Protection class: IP65. Service life (L70): up to 50,000 hours. High luminous efficacy: up to 120 lm/W. Product advantages: Modern, exclusive design. Up to 60% energy savings compared to conventional hall mirror lights. 3-year guarantee. Weight and size optimization through compact design. Areas of application: Replacement for hall mirror lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, commercial buildings, lobbies). Technical equipment: Bracket available. Reflector available.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	20000 lm
Color temperature:	6500 K
Color consistency (McAdam ellipse):	SDCM5
Protection class (IP):	IP65
Impact resistance:	IK06
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-20 - 45 °C
Length:	500 mm
Height / Depth:	50.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	166.00 W
Luminaire luminous efficacy:	120 lm/W
With control gear:	yes
Connection type:	other
Number of poles:	3
Type of wiring:	Termination
With light source:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Light distributor:	diffuser lens/optics/panel
Housing color:	black
Housing material:	aluminum
Weight:	1.5
Weight unit:	KG
Outer diameter:	260.00 mm
Reflector:	without
With protective cover:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Without dimming function:	yes
Nominal current:	720 mA
Max. number of lights circuit breaker C16:	17
Max. number of lights circuit breaker B16:	17
Socket:	without
Conductor cross-section:	1.0 mm²
Short description:	HIGH BAY COMPACT 166W 865 110DEG IP65

Characteristics

HABHB COMP V 166W 865 110DEG IP65 VS1

Manufacturer

HAN4058075708228

GTIN4058075708228

Connection typeOther

Type of wiringDiploma

Outer diameter260.00 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-120000lm

Rated ambient temperature according to IEC62722-2-1-20 - 45 °C

Color consistency (McAdam ellipse)SDCM5

Color temperature

VersionWithout

Housing colorBlack

Weight1,5

Weight unit kg

Height/Depth50.00 mm

Short descriptionHIGH BAY COMPACT 166W 865 110DEG IP65

Conductor cross-section1.0 mm²

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length500 mm

Max. number of luminaires Circuit breaker B1617

Max. number of luminaires Circuit breaker C1617

Max. system performance166.00W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage

Rated current720mA

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP65

Protection classI

Voltage type

Housing materialAluminum
