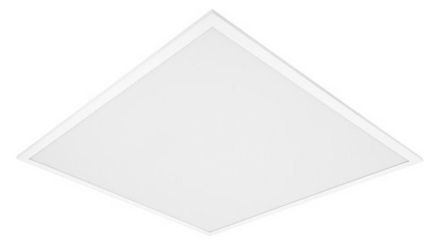

HABBIOLUX HCL PL 600 S 40W TW ZB
HAN4058075724549
GTIN4058075724549
Connection typePlug-in terminal
Type of wiringDiploma
Execution of the gridFrosted
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-14400lm
Rated ambient temperature according to IEC62722-2-1-20 - 40 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1Yes
Width595.00 mm
Dimming ZigbeeYes
Dimming manufacturer-specificYes
Dimming programmableYes
Installation width575 mm
Installation height/depth50.0 mm
Installation length575 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature adjustableContinuously variable
Color rendering index CRI90-100
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight3,11
Weight unit kg
Height/Depth50.0 mm
Short descriptionBIOLUX HCL PANEL ZIGBEE GEN 2 600 S 40W TW E.g
Luminaire luminous efficacy110lm/W
LampsLED not replaceable
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length595.00 mm
Max. number of luminaires Circuit breaker B1674
Max. number of luminaires Circuit breaker C1674
Max. system performance40.00W
With operating deviceYes
With light sourceYes
Rated current190,000mA
Surface protection housingPowder coated
Photobiological safety according to EN 62471RG0
Number of poles2
Impact resistanceIK02
IP protection)IP20
Protection classII
Housing materialAluminum
