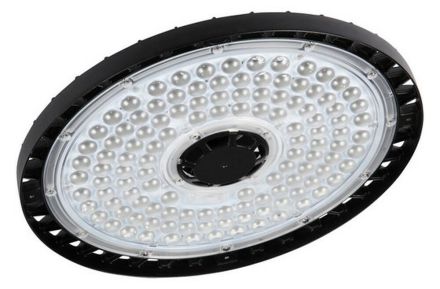

LEDVANCE Osram 4058075764248 HB P 147W 865 70DEG IP65 LED high bay luminaire

LEDVANCE Osram 4058075764248 HB P 147W 865 70DEG IP65 LED high bay luminaire

In stock

SKU: 1063162

Price on request

€217.44

€0

Overview

High bay lights up to 150 lm/W and attractive UGR values. Product features: Different luminous fluxes and opening angles for mounting heights from ~ 6 m to 14 m in 4000 K or 6500 K. Product advantages: Improved UGR compared to previous generations, up to UGR 22 in combination with reflector. High luminous efficacy. Up to 64% energy savings compared to conventional high bay lights. 5-year guarantee. Weight and size optimization through compact design. Areas of application: Replacement for high bay lights with mercury vapor or metal halide lamps. Warehouses. Logistics halls. Industry. High ceilings (e.g. in shopping centers, airports, commercial buildings, lobbies). Technical equipment: Mounting ring included. Mounting brackets, reflectors and refractors available as separate accessories.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	22000 lm
Color temperature:	6500 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM5
Protection class (IP):	IP65
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-30 - 50 °C
Length:	1500 mm
Height/Depth:	152.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	147.00 W
Luminaire luminous efficacy:	150 lm/W
Power factor:	0.95
With control gear:	yes
Control gear:	EVG
Connection type:	other
Number of poles:	3
Type of wiring:	Termination
With light source:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Light distributor:	without
Housing color:	black
Housing material:	aluminum
Weight:	2.55
Weight unit:	KG
Outer diameter:	321.00 mm
Reflector:	without
Socket:	without
Conductor cross-section:	1.0 mm²
With Protective cover:	yes
Nominal current:	660 mA
Rated service life L70/B50 at 25 °C:	80000 h
Without dimming function:	yes
Max. number of lights circuit breaker C16:	6
Max. number of lights circuit breaker B16:	3
Short description:	HIGH BAY GEN 4 147W 865 70DEG IP65

Characteristics

HABHB 147W 865 70DEG IP65

Manufacturer

HAN4058075764248

GTIN4058075764248

Connection typeOther

Type of wiringDiploma

Outer diameter321.00 mm

Rated lifetime L70/B50 at 25 °C80000 hours

Rated luminous flux according to IEC 62722-2-122000lm

Rated ambient temperature according to IEC62722-2-1-30 - 50 °C

Operating deviceElectronic ballast

Color consistency (McAdam ellipse)SDCM5

Color temperature

Color rendering index CRI80-89

VersionWithout

Housing colorBlack

Weight2,55

Weight unit kg

Height/Depth152.00 mm

Short descriptionHIGH BAY GEN 4 147W 865 70DEG IP65

Power factor0.95

Conductor cross-section1.0 mm²

Luminaire luminous efficacy150lm/W

LampsLED not replaceable

Light distributorWithout

Light distributionSymmetrical

Length1500 mm

Max. number of luminaires Circuit breaker B163

Max. number of luminaires Circuit breaker C166

Max. system performance147.00W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage

Rated current660mA

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage type

Housing materialAluminum
