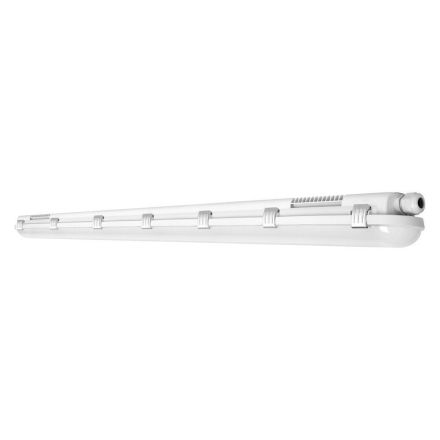

LEDVANCE Osram 4058075836082 DP S 1500 26W 840 IP65 GY LED moisture-proof luminaire

LEDVANCE Osram 4058075836082 DP S 1500 26W 840 IP65 GY LED moisture-proof luminaire

In stock

SKU: 1063680

Price on request

€106.18

€0

Overview

Damp-proof lights, classic design with high-frequency sensor. Product features: High-frequency sensor for daylight and motion detection. Sensor with master-slave and master-master functionality. High light output: up to 139 lm/W. Beam angle: 110°. Product advantages: Installation of a larger number of sensor-controlled lights possible thanks to the master-slave and master-master functionality. Multiple setting options for sensor range, daylight detection and hold time. Low-flicker light 10%. Easy installation, tool-free connection. 5-year guarantee. Areas of application: Industrial and storage areas. Parking lots and underpasses. Garages. Workshops, production lines. Technical equipment: Holding bracket, anti-theft protection, suspension bracket, second cable gland and 2 grommets included.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	3500 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Protection class (IP):	IP65
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-20 - 40 °C
Length:	1500.00 mm
Width:	82.00 mm
Height/Depth:	68.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	26.00 W
Luminaire luminous efficacy:	135 lm/W
Power factor:	0.90
With control gear:	yes
Control gear:	EVG
Connection type:	Plug terminal
Number of poles:	5
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	grey
Housing material:	plastic
Cover material:	opal plastic
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety in accordance with EN 62471:	RG0
Weight:	1.72
Weight unit:	KG
With motion detector:	yes
Design of the grid:	other
With light sensor:	yes
Rated current:	125,000 mA
Light color:	white
IFTTT support available:	yes
Rated service life L70/B50 at 25 °C:	70,000 h
Without Dimming function:	yes
Max. number of lights circuit breaker C16:	44
Max. number of lights circuit breaker B16:	56
Replaceable operating device:	yes
Surface protection housing:	untreated
Short description:	DAMP PROOF SENSOR 1500 26W 840 IP65 GY
Wall mounting:	yes
Energy efficiency class of the light source according to EU Directive 2019/2015:	D

Characteristics

Wall mountingYes

HABDP S 1500 26W 840 IP65 GY

Manufacturer

HAN4058075836082

GTIN4058075836082

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridOther

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-13500lm

Rated ambient temperature according to IEC62722-2-1-20 - 40 °C

Operating deviceElectronic ballast

Width82.00 mm

Energy efficiency class of the light source according to EU Directive 2019/2015D

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for pendulum suspensionYes

Housing colorGray

Weight1,72

Weight unit kg

Height/Depth68.00 mm

IFTTT support availableYes

Short descriptionDAMP PROOF SENSOR 1500 26W 840 IP65 GY

Power factor0.90

Luminaire luminous efficacy135lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length1500.00 mm

Max. number of luminaires Circuit breaker B1656

Max. number of luminaires Circuit breaker C1644

Max. system performance26.00 W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage

Rated current125,000mA

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage type

Cover materialPlastic opal

Housing materialPlastic
