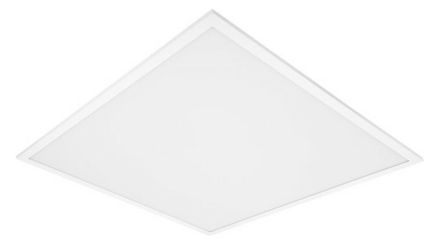

LEDVANCE Osram 4099854014239 PL CMFT 600 P 33W 840 U19 ZBVR LED recessed luminaire

LEDVANCE Osram 4099854014239 PL CMFT 600 P 33W 840 U19 ZBVR LED recessed luminaire

In stock

SKU: 1062251

Price on request

€140.12

€0

Overview

Square insert lights with strong glare control, for 600 x 600 mm ceiling systems and Zigbee 3.0 technology. Product features: IoT-capable light with Zigbee 3.0 technology. Frame made of extruded aluminum. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Suitable light for VIVARES and other Zigbee 3.0 light management systems. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 130 lm/W. Good glare control (UGR

Property	Value
BEG funding program:	Yes
Rated luminous flux according to IEC 62722-2-1:	4320 lm
Color temperature:	4000 K
Color consistency (McAdam ellipse):	SDCM3
Protection class (IP):	IP40
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 50 °C
Length:	595.00 mm
Width:	595.00 mm
Height/Depth:	50.0 mm
Voltage type:	AC
Rated voltage:	220 - 240 V
Max. System power:	33.00 W
Luminaire luminous efficacy:	130 lm/W
With control gear:	yes
Connection type:	Plug terminal
Number of poles:	5
Type of wiring:	suitable for through-wiring
With light source:	yes
Light emission:	direct
Light distributor:	Diffuser lens/optics/panel
Housing color:	white
Suitable for Surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendulum suspension:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	1.91
Weight unit:	KG
Design of the grid:	high gloss
Installation width:	575 mm
Installation length:	575 mm
Suitable for recessed mounting:	yes
Suitable for computer workstations according to EN 12464-1:	yes
Nominal current:	162,000 mA
Rated service life L70/B50 at 25 °C:	100,000 h
Zigbee dimming:	yes
Max. number of luminaires circuit breaker C16:	66
Max. Number of lights circuit breaker B16:	40
Replaceable operating device:	yes
Installation height/depth:	50.0 mm
Surface protection housing:	powder-coated
Brief description:	PANEL COMFORT 600 UGR<,19 ZIGBEE 33W 840 U19 ZBVR

Characteristics

HABPL CMFT 600 P 33W 840 U19 ZBVR

Manufacturer

HAN4099854014239

GTIN4099854014239

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-14320lm

Rated ambient temperature according to IEC62722-2-1-10 - 50 °C

Suitable for computer workstations according to EN 12464-1Yes

Width595.00 mm

Dimming ZigbeeYes

Installation width575 mm

Installation height/depth50.0 mm

Installation length575 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight1,91

Weight unit kg

Height/Depth50.0 mm

Short descriptionPANEL COMFORT 600 UGR<,19 ZIGBEE 33W 840 U19 ZBVR

Luminaire luminous efficacy130lm/W

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Length595.00 mm

Max. number of luminaires Circuit breaker B1640

Max. number of luminaires Circuit breaker C1666

Max. system performance33.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current162,000mA

Surface protection housingPowder coated

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK02

IP protection)IP40

Protection classII

Voltage type
