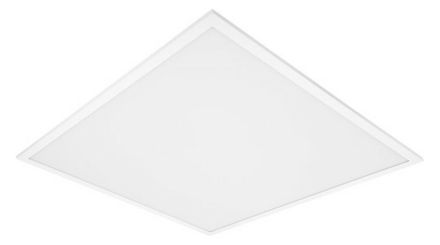

LEDVANCE Osram 4099854014680 PL CMFT 625 P 33W 840 U19 DALIVR LED recessed luminaire

LEDVANCE Osram 4099854014680 PL CMFT 625 P 33W 840 U19 DALIVR LED recessed luminaire

In stock

SKU: 1062271

Price on request

€105.96

€0

Overview

Square insert luminaires with strong glare control, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features: IoT-capable luminaire with DALI-2 technology. Suitable for use with central battery systems in accordance with EN60598-2-22. Push-DIM function for switching and dimming directly on the wall switch. Versions with CRI 90 available. Frame made of extruded aluminum. Polystyrene diffuser. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 130 lm/W. Good glare control (UGR

Property	Value
BEG funding program:	Yes
Rated luminous flux according to IEC 62722-2-1:	4320 lm
Color temperature:	4000 K
Color consistency (McAdam ellipse):	SDCM3
Protection class (IP):	IP40
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 50 °C
Length:	620.00 mm
Width:	620.00 mm
Height/Depth:	50.0 mm
Voltage type:	AC/DC
Rated voltage:	220 - 240 V
Max. System power:	33.00 W
Luminaire luminous efficacy:	130 lm/W
With control gear:	yes
DALI dimming:	yes
DALI-2 dimming:	yes
Touch and Dim dimming:	yes
Connection type:	Plug-in terminal
Number of poles:	5
Type of wiring:	suitable for through-wiring
With Light source:	yes
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	2.21
Weight unit:	KG
Version of the Grid:	high-gloss
Installation width:	600.0 mm
Installation length:	600.0 mm
Suitable for emergency lighting:	yes
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	yes
Nominal current:	150,000 mA
Rated service life L70/B50 at 25 °C:	100,000 h
Max. Number of lights with circuit breaker C16:	65
Max. number of lights with circuit breaker B16:	40
Replaceable operating device:	yes
Installation height/depth:	50.0 mm
Surface protection housing:	powder-coated
Brief description:	PANEL COMFORT 625 UGR<,19 DALI 33W 840 U19 DALIVR

Characteristics

HABPL CMFT 625 P 33W 840 U19 DALIVR

Manufacturer

HAN4099854014680

GTIN4099854014680

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-14320lm

Rated ambient temperature according to IEC62722-2-1-10 - 50 °C

Suitable for computer workstations according to EN 12464-1Yes

Width620.00 mm

Dimming DALIYes

Dimming DALI-2Yes

Dimming Touch and DimYes

Installation width600.0 mm

Installation height/depth50.0 mm

Installation length600.0 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight2,21

Weight unit kg

Height/Depth50.0 mm

Short descriptionPANEL COMFORT 625 UGR<,19 DALI 33W 840 U19 DALIVR

Luminaire luminous efficacy130lm/W

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Length620.00 mm

Max. number of luminaires Circuit breaker B1640

Max. number of luminaires Circuit breaker C1665

Max. system performance33.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current150,000mA

Surface protection housingPowder coated

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK02

IP protection)IP40

Protection classII

Voltage type
