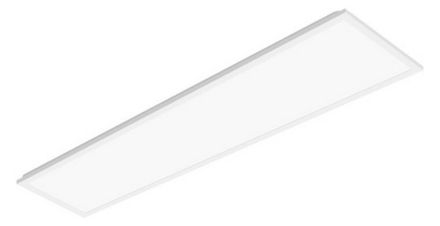

LEDVANCE Osram 4099854017186 PL COMP 1200 V 33W 840 DALI LED recessed luminaire

In stock
SKU: 1062278
€99.89
Into a basketIn the basketGo

Overview

Rectangular recessed luminaires for 1200 x 300 mm ceiling systems and DALI-2 technology. Product features: Suitable for use with central battery systems in accordance with EN60598-2-22. Push-DIM function for switching and dimming directly on the wall switch. Frame made of extruded aluminum. Polystyrene diffuser. Service life (L80/B10): up to 50,000 hours (at 25 °C). Product advantages: Low-flicker light thanks to special electronic ballast. External driver for increased flexibility and easy installation. Suitable for emergency lighting. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 1200 x 300 mm. Technical equipment: Accessories available for various installation options. Safety cable for luminaires included. Safety clamps pre-assembled. External ballast included. Suitable for use with Emergency Conversion Box. Connection box with 5-pin terminal for through-wiring for cable cross-sections up to 2.5 mm available separately.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:3630 lm
Color temperature:4000 K
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP40
Impact resistance:IK02
Protection class:II
Rated ambient temperature according to IEC62722-2-1:-10 - 45 °C
Length:1195.00 mm
Width:295.00 mm
Height/Depth:50.0 mm
Voltage type:AC/DC
Rated voltage:220 - 240 V
Max. System power:33.00 W
Luminaire luminous efficacy:110 lm/W
With control gear:yes
Control gear:EVG
DALI dimming:yes
DALI-2 dimming:yes
Touch and Dim dimming:yes
Connection type:Plug-in terminal
Number of poles:4
Type of wiring:suitable for through-wiring
With Light source:yes
Light emission:direct
Light distributor:diffuser lens/optics/panel
Housing colour:white
Suitable for surface mounting:yes
Suitable for ceiling mounting:yes
Suitable for pendant suspension:yes
Photobiological safety according to EN 62471:RG0
Weight:1.54
Weight unit:KG
Version of the Grid:matt
Installation width:290 mm
Installation length:1190 mm
Suitable for emergency lighting:yes
Suitable for recessed mounting:yes
Nominal current:190,000 mA
Rated service life L70/B50 at 25 °C:70,000 h
Max. number of luminaires circuit breaker C16:83
Max. Number of lights circuit breaker B16:83
Replaceable operating device:yes
Installation height/depth:50.0 mm
Short description:PANEL COMPACT 1200 DALI 33W 840 DALI

Characteristics

HABPL COMP 1200 V 33W 840 DALI
ManufacturerLEDVANCE Osram
HAN4099854017186
GTIN4099854017186
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridFrosted
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-13630lm
Rated ambient temperature according to IEC62722-2-1-10 - 45 °C
Operating deviceElectronic ballast
Width295.00 mm
Dimming DALIYes
Dimming DALI-2Yes
Dimming Touch and DimYes
Installation width290 mm
Installation height/depth50.0 mm
Installation length1190 mm
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for emergency lightingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight1,54
Weight unit kg
Height/Depth50.0 mm
Short descriptionPANEL COMPACT 1200 DALI 33W 840 DALI
Luminaire luminous efficacy110lm/W
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length1195.00 mm
Max. number of luminaires Circuit breaker B1683
Max. number of luminaires Circuit breaker C1683
Max. system performance33.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current190,000mA
Photobiological safety according to EN 62471RG0
Number of poles4
Impact resistanceIK02
IP protection)IP40
Protection classII
Voltage typeAC/DC
