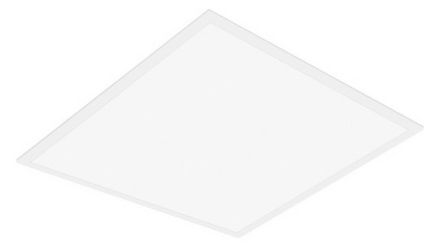

LEDVANCE Osram 4099854017261 PL COMP 600 V 33W 840 U19 DALI LED recessed luminaire

LEDVANCE Osram 4099854017261 PL COMP 600 V 33W 840 U19 DALI LED recessed luminaire

In stock

SKU: 1062291

Price on request

€79.78

€0

Overview

Square recessed luminaires with strong glare control, for 600 x 600 mm ceiling systems and DALI-2 technology. Product features: Suitable for use with central battery systems in accordance with EN60598-2-22. Push-DIM function for switching and dimming directly on the wall switch. Frame made of extruded aluminum. Polystyrene diffuser. Service life (L80/B10): up to 50,000 h (at 25 °C). Product advantages: Good glare control (UGR

Property	Value
Rated luminous flux according to IEC 62722-2-1:	3630 lm
Color temperature:	4000 K
Color consistency (McAdam ellipse):	SDCM5
Protection class (IP):	IP40
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 45 °C
Length:	595.00 mm
Width:	595.00 mm
Height/Depth:	50.0 mm
Voltage type:	AC/DC
Rated voltage:	220 - 240 V
Max. System power:	33.00 W
Luminaire luminous efficacy:	110 lm/W
With control gear:	yes
Control gear:	EVG
DALI dimming:	yes
DALI-2 dimming:	yes
Touch and Dim dimming:	yes
Connection type:	Plug-in terminal
Number of poles:	4
Type of wiring:	suitable for through-wiring
With Light source:	yes
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	1.79
Weight unit:	KG
Version of the Grid:	high-gloss
Installation width:	575 mm
Installation length:	575 mm
Suitable for emergency lighting:	yes
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	yes
Nominal current:	190,000 mA
Rated service life L70/B50 at 25 °C:	70,000 h
Max. Number of lights circuit breaker C16:	83
Max. number of lights circuit breaker B16:	83
Replaceable control gear:	yes
Installation height/depth:	50.0 mm
Short description:	PANEL COMPACT 600 UGR<,19 DALI 33W 840 U19 DALI

Characteristics

HABPL COMP 600 V 33W 840 U19 DALI

Manufacturer

HAN4099854017261

GTIN4099854017261

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-13630lm

Rated ambient temperature according to IEC62722-2-1-10 - 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width595.00 mm

Dimming DALIYes

Dimming DALI-2Yes

Dimming Touch and DimYes

Installation width575 mm

Installation height/depth50.0 mm

Installation length575 mm

Color consistency (McAdam ellipse)SDCM5

Color temperature

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight1,79

Weight unit kg

Height/Depth50.0 mm

Short descriptionPANEL COMPACT 600 UGR<,19 DALI 33W 840 U19 DALI

Luminaire luminous efficacy110lm/W

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Length595.00 mm

Max. number of luminaires Circuit breaker B1683

Max. number of luminaires Circuit breaker C1683

Max. system performance33.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current190,000mA

Photobiological safety according to EN 62471RG0

Number of poles4

Impact resistanceIK02

IP protection)IP40

Protection classII

Voltage type
