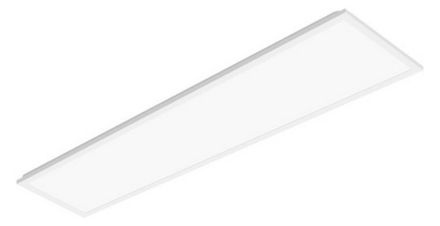

LEDVANCE Osram 4099854017285 Panel COMP 1200 V 35W 940 U19 LED recessed light

In stock
SKU: 1062190
€111.12
Into a basketIn the basketGo

Overview

Rectangular recessed luminaires with strong glare control and CRI90, for 1200 x 300 mm ceiling systems. Product features: Frame made of extruded aluminum. Polystyrene diffuser. Service life (L80/B10): up to 50,000 hours (at 25 °C). Product advantages: High color rendering (Ra>90) with up to 104 lm/W. Good glare control (UGR 19). Low-flicker light thanks to special electronic ballast. External driver for increased flexibility and easy installation. Versions with DALI electronic ballast available. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 1200 x 300 mm. Technical equipment: Accessories available for various installation options. Safety cable for luminaires included. Safety clamps pre-assembled. External ballast included. Suitable for operation with Emergency Conversion Box. Connection box with 5-pin terminal for through-wiring for cable cross-sections up to 2.5 mm available separately.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:3640 lm
Color temperature:4000 K
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP40
Impact resistance:IK02
Protection class:II
Rated ambient temperature according to IEC62722-2-1:-10 - 45 °C
Length:1195.00 mm
Width:295.00 mm
Height/Depth:50.0 mm
Voltage type:AC
Rated voltage:220 - 240 V
Max. System power:35.00 W
Luminaire luminous efficacy:104 lm/W
With control gear:yes
Connection type:Plug terminal
Number of poles:2
Type of wiring:suitable for through-wiring
With light source:yes
Light emission:direct
Light distributor:Diffuser lens/optics/panel
Housing color:white
Suitable for Surface mounting:yes
Suitable for ceiling mounting:yes
Suitable for pendant suspension:yes
Photobiological safety according to EN 62471:RG0
Weight:1.79
Weight unit:KG
Design of the grid:high gloss
Installation width:290 mm
Installation length:1190 mm
Suitable for emergency lighting:yes
Suitable for Built-in mounting:yes
Suitable for computer workstations in accordance with EN 12464-1:yes
Nominal current:150,000 mA
Rated service life L70/B50 at 25 °C:70,000 h
Max. number of lights with circuit breaker C16:85
Max. Number of lights circuit breaker B16:67
Replaceable operating device:yes
Installation height/depth:50.0 mm
Without dimming function:yes
Short description:PANEL COMPACT 1200 UGR<,19 CRI90 35W 940 U19

Characteristics

HABPanel COMP 1200 V 35W 940 U19
ManufacturerLEDVANCE Osram
HAN4099854017285
GTIN4099854017285
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridHigh gloss
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-13640lm
Rated ambient temperature according to IEC62722-2-1-10 - 45 °C
Suitable for computer workstations according to EN 12464-1Yes
Width295.00 mm
Installation width290 mm
Installation height/depth50.0 mm
Installation length1190 mm
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Suitable for emergency lightingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight1,79
Weight unit kg
Height/Depth50.0 mm
Short descriptionPANEL COMPACT 1200 UGR<,19 CRI90 35W 940 U19
Luminaire luminous efficacy104lm/W
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length1195.00 mm
Max. number of luminaires Circuit breaker B1667
Max. number of luminaires Circuit breaker C1685
Max. system performance35.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current150,000mA
Without dimming functionYes
Photobiological safety according to EN 62471RG0
Number of poles2
Impact resistanceIK02
IP protection)IP40
Protection classII
Voltage typeAC
