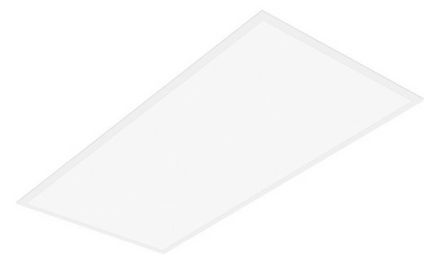

LEDVANCE Osram 4099854017643 PL COMP 1200X600 V 53W 840 U19 LED recessed luminaire

LEDVANCE Osram 4099854017643 PL COMP 1200X600 V 53W 840 U19 LED recessed luminaire

In stock

SKU: 1062281

Price on request

€121.56

€0

Overview

Rectangular recessed luminaires with strong glare control, for 1200 x 600 mm ceiling systems. Product features: Frame made of extruded aluminum. Polystyrene diffuser. Service life (L80/B10): up to 50,000 h (at 25 °C). Product advantages: Good glare control (UGR

Property	Value
Rated luminous flux according to IEC 62722-2-1:	5830 lm
Color temperature:	4000 K
Color consistency (McAdam ellipse):	SDCM5
Protection class (IP):	IP40
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 45 °C
Length:	1195.00 mm
Width:	595.00 mm
Height/Depth:	50.0 mm
Voltage type:	AC
Rated voltage:	220 - 240 V
Max. System power:	53.00 W
Luminaire luminous efficacy:	110 lm/W
With control gear:	yes
Connection type:	Plug terminal
Number of poles:	2
Type of wiring:	suitable for through-wiring
With light source:	yes
Light emission:	direct
Light distributor:	Diffuser lens/optics/panel
Housing color:	white
Suitable for Surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	4
Weight unit:	KG
Design of the grid:	high gloss
Installation width:	575 mm
Installation length:	1175 mm
Suitable for emergency lighting:	yes
Suitable for Built-in mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	yes
Nominal current:	230,000 mA
Rated service life L70/B50 at 25 °C:	70,000 h
Max. number of luminaires with circuit breaker C16:	55
Max. Number of lights circuit breaker B16:	55
Replaceable operating device:	yes
Installation height/depth:	50.0 mm
Without dimming function:	yes
Short description:	PANEL COMPACT 1200 x 600 UGR<,19 53W 840 U19

Characteristics

HABPL COMP 1200X600 V 53W 840 U19

Manufacturer

HAN4099854017643

GTIN4099854017643

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-15830lm

Rated ambient temperature according to IEC62722-2-1-10 - 45 °C

Suitable for computer workstations according to EN 12464-1Yes

Width595.00 mm

Installation width575 mm

Installation height/depth50.0 mm

Installation length1175 mm

Color consistency (McAdam ellipse)SDCM5

Color temperature

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight4

Weight unit kg

Height/Depth50.0 mm

Short descriptionPANEL COMPACT 1200 x 600 UGR<.19 53W 840 U19

Luminaire luminous efficacy110lm/W

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Length1195.00 mm

Max. number of luminaires Circuit breaker B1655

Max. number of luminaires Circuit breaker C1655

Max. system performance53.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current230,000mA

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

Impact resistanceIK02

IP protection)IP40

Protection classII

Voltage type
