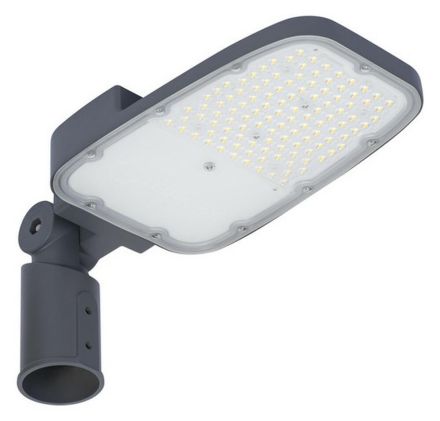

LEDVANCE Osram 4099854030451 SL AREA SPD MDV 65W730 RV20STGYFS1 LED mast luminaire

In stock
SKU: 1063255
€185.97
Into a basketIn the basketGo

Overview

For a wide range of applications in street and area lighting. Product features: Light distribution for streets with a similar road width to the light point height. Mast adapter included, suitable for masts with 48-60 mm spigot size. Adjustable mast adapter, suitable for mast attachment and mast top mounting. +/- 30° tilt adjustment without opening the housing. High light output: up to 135 lm/W. Ambient temperature range during operation: -30-50 °C. High surge protection of up to 10 kV (L/N-PE). Product advantages: Functional and minimalist design. Low maintenance and operating costs thanks to long LED service life. 5-year guarantee. Areas of application: Outdoor use (IP66). Roads of classes M, C and P in accordance with EN 13201. Parking lots. Area lighting.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:8450 lm
Color temperature:3000 K
Color rendering index CRI:70-79
Protection class (IP):IP66
Impact resistance:IK08
Protection class:I
Rated ambient temperature according to IEC62722-2-1:-30 - 50 °C
Length:500 mm
Width:193.00 mm
Height/Depth:73.00 mm
Voltage type:AC
Rated voltage:100 - 240 V
Max. System power:65.00 W
Luminaire luminous efficacy:130 lm/W
With control gear:yes
Connection type:other
Number of poles:3
Type of wiring:Termination
With light source:yes
Light source:LED not replaceable
Light distributor:Focus lens
Housing color:grey
Material of Housing:aluminum
Weight:1.79
Weight unit:KG
Mounting type:attachment
Socket:without
Surface:powder-coated
Cable length:0.5 m
With connection cable:yes
Suitable for braid size:60 mm
Nominal current:295,000 mA
Remote control:without
Rated service life L70/B50 at 25 °C:100000 h
Without dimming function:yes
Replaceable operating device:yes
Short description:STREETLIGHT AREA MEDIUM RV20ST 65W 730 RV20ST GY

Characteristics

HABSL AREA SPD MDV 65W730 RV20STGYFS1
ManufacturerLEDVANCE Osram
HAN4099854030451
GTIN4099854030451
Connection typeOther
Type of wiringDiploma
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C100000 hours
Rated luminous flux according to IEC 62722-2-18450lm
Rated ambient temperature according to IEC62722-2-1-30 - 50 °C
Width193.00 mm
Color temperature3000K
Color rendering index CRI70-79
VersionWithout
Remote controlWithout
Suitable for braid size60 mm
Housing colorGray
Weight1,79
Weight unit kg
Height/Depth73.00 mm
Cable length0.5m
Short descriptionSTREETLIGHT AREA MEDIUM RV20ST 65W 730 RV20ST GY
Luminaire luminous efficacy130lm/W
LampsLED not replaceable
Light distributorFocus lens
Length500 mm
Max. system performance65.00W
With connection cableYes
With operating deviceYes
With light sourceYes
Mounting typeEssay
Nominal voltage100 - 240V
Rated current295,000mA
SurfacePowder coated
Without dimming functionYes
Number of poles3
Impact resistanceIK08
IP protection)IP66
Protection classI
Voltage typeAC
Housing materialAluminum
