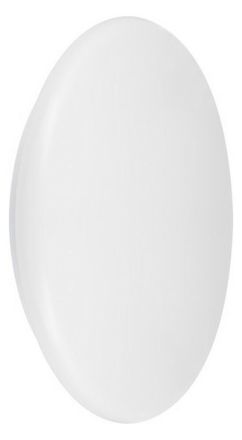

LEDVANCE Osram 4099854042096 SF CIRC 350 SEN V 18W 3CCT IP44 LED wall / ceiling light

LEDVANCE Osram 4099854042096 SF CIRC 350 SEN V 18W 3CCT IP44 LED wall / ceiling light

In stock

SKU: 1063267

Price on request

€55.59

€0

Overview

Wall and ceiling light with IP44, high frequency sensor and selectable color temperature. Product features: High frequency sensor for daylight and motion detection. Protection class: IP44 (ceiling mounting), IP 20 (wall mounting). Impact resistance: IK03. Metal housing, PMMA cover. Ambient temperature range during operation: -20 - +40 °C. Indoor use only, not suitable for outdoor use. Product advantages: Easy adjustment of the sensor range, daylight detection and lighting duration. Indoor light with high light output. Very versatile thanks to a selectable light color (CCT Select) in 3000K, 4000K and 5000K. Reduced total height of just 75mm compared to the standard version. Up to 55% energy savings compared to lights that use compact fluorescent lamps. Simple and quick installation. Very homogeneous light. 5 year guarantee. Areas of application: Hallways. Stairwells. Bathrooms. Entrance areas. Technical equipment: Replacement cover optionally available.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	1440 lm
Color temperature:	3000 K
Protection class (IP):	IP44
Impact resistance:	IK03
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-20 - 40 °C
Height/depth:	75.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	18.00 W
Luminaire luminous efficacy:	80 lm/W
With control gear:	yes
Control gear:	EVG
Connection type:	Plug terminal
Number of poles:	2
Type of wiring:	Terminal
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Housing color:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	0.6
Weight unit:	KG
Outer diameter:	350 mm
Socket:	other
With motion detector:	yes
Design of the grid:	matt
With light sensor:	yes
Nominal current:	85,000 mA
Rated service life L70/B50 at 25 °C:	50000 h
Without dimming function:	yes
Max. number of luminaires circuit breaker C16:	133
Max. Number of lights circuit breaker B16:	104
Color temperature adjustable:	Levels
Replaceable operating device:	yes
Surface protection housing:	powder-coated
Brief description:	SURFACE CIRCULAR 350 3CCT SENSOR 18W 3CCT IP44

Characteristics

HABSF CIRC 350 SEN V 18W 3CCT IP44

Manufacturer

HAN4099854042096

GTIN4099854042096

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Replaceable operating deviceYes

Outer diameter350 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11440lm

Rated ambient temperature according to IEC62722-2-1-20 - 40 °C

Operating deviceElectronic ballast

Color temperature

Color temperature adjustableStages

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Housing colorWhite

Weight0,6

Weight unit kg

Height/Depth75.00 mm

Short descriptionSURFACE CIRCULAR 350 3CCT SENSOR 18W 3CCT IP44

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Max. number of luminaires Circuit breaker B16104

Max. number of luminaires Circuit breaker C16133

Max. system performance18.00 W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage

Rated current85,000mA

Surface protection housingPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

Impact resistanceIK03

IP protection)IP44

Protection classI

Voltage type
