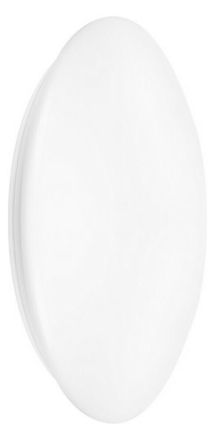

LEDVANCE Osram 4099854042171 SF CIRC 500 SEN V 42W 840 IP44 PS LED wall / ceiling light

LEDVANCE Osram 4099854042171 SF CIRC 500 SEN V 42W 840 IP44 PS LED wall / ceiling light

In stock

SKU: 1062342

Price on request

€63.84

€0

Overview

Wall and ceiling light with IP44, high frequency sensor and Power Select (PS). Product features: High frequency sensor for daylight and motion detection. Protection class: IP44 (ceiling mounting), IP 20 (wall mounting). Extended service life (L70/B10): up to 50,000h (at 25°C). Impact resistance: IK03. Metal housing, PMMA cover. Ambient temperature range during operation: -20.+40 °C. Indoor use only, not suitable for outdoor use. Product advantages: Easy adjustment of the sensor range, daylight detection and lighting duration. Very versatile thanks to a wattage setting that can be selected on the driver (Power Select - PS). Indoor light with high light output. Up to 55% energy savings compared to lights that use compact fluorescent lamps. Simple and quick installation. Very homogeneous light. 5 year guarantee. Areas of application: Hallways. Stairwells. Bathrooms. Entrance areas. Technical equipment: Replacement cover optionally available.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	3500 lm
Color temperature:	4000 K
Protection class (IP):	IP44
Impact resistance:	IK03
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-20 - 45 °C
Length:	500 mm
Height/depth:	105 mm
Voltage type:	AC
Nominal voltage:	220 V
Max. system power:	42 W
Luminaire luminous efficacy:	83 lm/W
With control gear:	yes
Control gear:	EVG
Connection type:	Plug terminal
Number of poles:	2
Type of wiring:	Terminal
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	1.2
Weight unit:	KG
Outer diameter:	500 mm
With Motion detector:	yes
Grid design:	matt
With light sensor:	yes
Nominal current:	185,000 mA
Rated service life L70/B50 at 25 °C:	50,000 h
Max. number of lights, circuit breaker C16:	11
Max. Number of lights circuit breaker B16:	7
Luminous flux adjustable:	Levels
Replaceable operating device:	yes
Surface protection housing:	powder-coated
Without dimming function:	yes
Socket:	other
Brief description:	SURFACE CIRCULAR 500 SENSOR PS 42W 840 IP44 PS

Characteristics

HABSF CIRC 500 SEN V 42W 840 IP44 PS

Manufacturer

HAN4099854042171

GTIN4099854042171

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Replaceable operating deviceYes

Outer diameter500 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-13500lm

Rated ambient temperature according to IEC62722-2-1-20 - 45 °C

Operating deviceElectronic ballast

Color temperature

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Housing colorWhite

Weight1,2

Weight unit kg

Height/Depth105 mm

Short descriptionSURFACE CIRCULAR 500 SENSOR HP 42W 840 IP44 HP

Luminaire luminous efficacy83lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux adjustableStages

Light distributorDiffuser lens/optics/panel

Length500 mm

Max. number of luminaires Circuit breaker B167

Max. number of luminaires Circuit breaker C1611

Max. system performance42W

With operating deviceYes

With motion detectorYes

With light sourceYes

With light sensorYes

Nominal voltage

Rated current185,000mA

Surface protection housingPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

Impact resistanceIK03

IP protection)IP44

Protection classI

Voltage type
