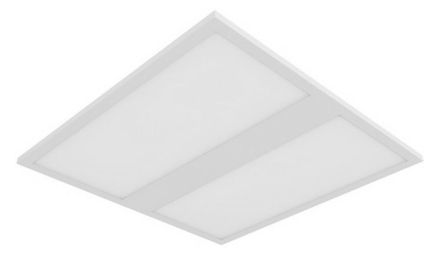

LEDVANCE Osram 4099854083303 PL PROT 600 P 36W 840 U19 PS LED recessed luminaire

LEDVANCE Osram 4099854083303 PL PROT 600 P 36W 840 U19 PS LED recessed luminaire

In stock

SKU: 1063236

Price on request

€142.31

€0

Overview

Square insert luminaires with IP54 protection, selectable wattage setting (Power Select - PS) and strong glare control, 600 x 600 mm. Product features: Protection class: IP54 (front), IP20 (rear). Sheet steel housing with rear recess for the driver to enable a total height of 34 mm. Polycarbonate diffuser (PC). 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Luminaire versions with IoT-capable DALI-2 driver available. Service life (L90/B10): 50,000 h (at 25° C). Panel can be equipped with optical sensors on individual request. Product advantages: Suitable for applications in which a higher protection class and higher impact protection are required. Very versatile thanks to a selectable wattage setting on the driver (Power Select - PS) and up to 5040 lm. Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 140 lm/W. High color consistency with SDCM 3. Extended services such as power consumption monitoring and remote maintenance possible with DALI versions. Good glare control (UGR 19). Extended heat resistance of the diffuser up to 850° C. Suitable for use in emergency lighting applications in accordance with EN 60598-2-22. Decentralized emergency lighting possible with separately available LEDVANCE Emergency Conversion Box. 5 year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Suitable for ceiling recessed systems with a grid size of 600 x 600 mm. Hospitals. Laboratories. Kitchens, canteens, work areas. Technical equipment: Accessories available for various installation options. Connection box with 5-pin connection terminal pre-installed. Safety cable for luminaires included. Safety clamps pre-assembled. External ballast included. Suitable for operation with Emergency Conversion Box. Special mounting frame with a total height of only 50 mm available separately

Property	Value
Rated luminous flux according to IEC 62722-2-1:	5040 lm
Color temperature:	4000 K
Color consistency (McAdam ellipse):	SDCM3
Protection class (IP):	IP54
Impact resistance:	IK06
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 50 °C
Length:	595.00 mm
Width:	595.00 mm
Height / Depth:	50.0 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	36 W
Luminaire luminous efficacy:	140 lm/W
With control gear:	yes
Control gear:	EVG
Connection type:	Plug-in terminal
Number of poles:	2
Type of wiring:	suitable for through-wiring
With Light source:	yes
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing colour:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	2.02
Weight unit:	KG
Version of the Grid:	high-gloss
Installation width:	575 mm
Installation length:	575 mm
Suitable for recessed mounting:	yes
Suitable for computer workstations in accordance with EN 12464-1:	yes
Nominal current:	165,000 mA
Rated service life L70/B50 at 25 °C:	100,000 h
Without dimming function:	yes
Max. Number of lights circuit breaker B16:	16
Luminous flux adjustable:	Levels
Replaceable control gear:	yes
Installation height/depth:	50.0 mm
Surface protection housing:	powder-coated
Brief description:	PANEL PROTECT 600 UGR<,19 PS 36W 840 U19 PS

Characteristics

HABPL PROT 600 P 36W 840 U19 PS

Manufacturer

HAN4099854083303

GTIN4099854083303

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridHigh gloss

Replaceable operating deviceYes

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-15040lm

Rated ambient temperature according to IEC62722-2-1-10 - 50 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width595.00 mm

Installation width575 mm

Installation height/depth50.0 mm

Installation length575 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for pendulum suspensionYes

Housing colorWhite

Weight2,02

Weight unit kg

Height/Depth50.0 mm

Short descriptionPANEL PROTECT 600 UGR<,19 HP 36W 840 U19 HP

Luminaire luminous efficacy140lm/W

Light emissionDirect

Luminous flux adjustableStages

Light distributorDiffuser lens/optics/panel

Length595.00 mm

Max. number of luminaires Circuit breaker B1616

Max. system performance36W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current165,000mA

Surface protection housingPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

Impact resistanceIK06

IP protection)IP54

Protection classII

Voltage type
